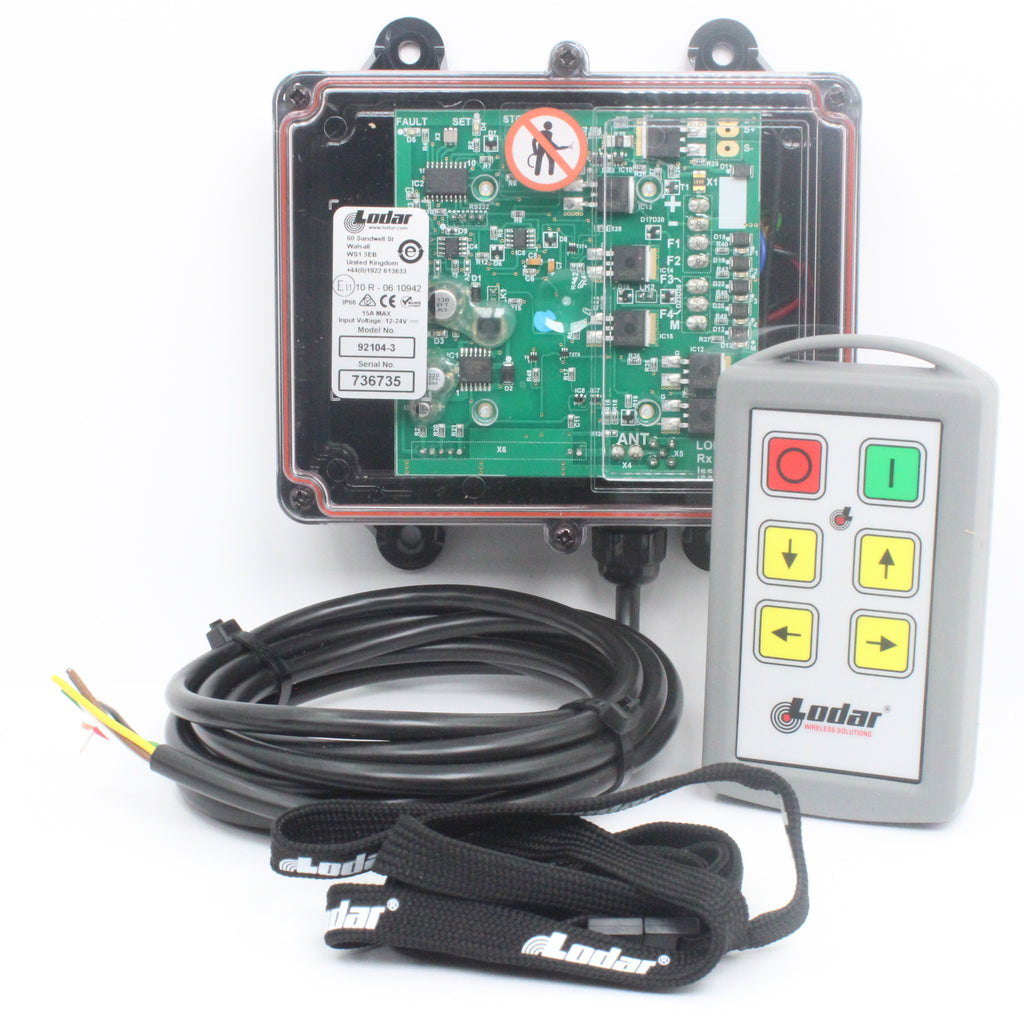

Lodar 92104-3 4 function wireless remote control full kit showing handset receiver box cables and lanyard
Lodar 92104-3 receiver unit open view showing PCB terminal blocks and wiring

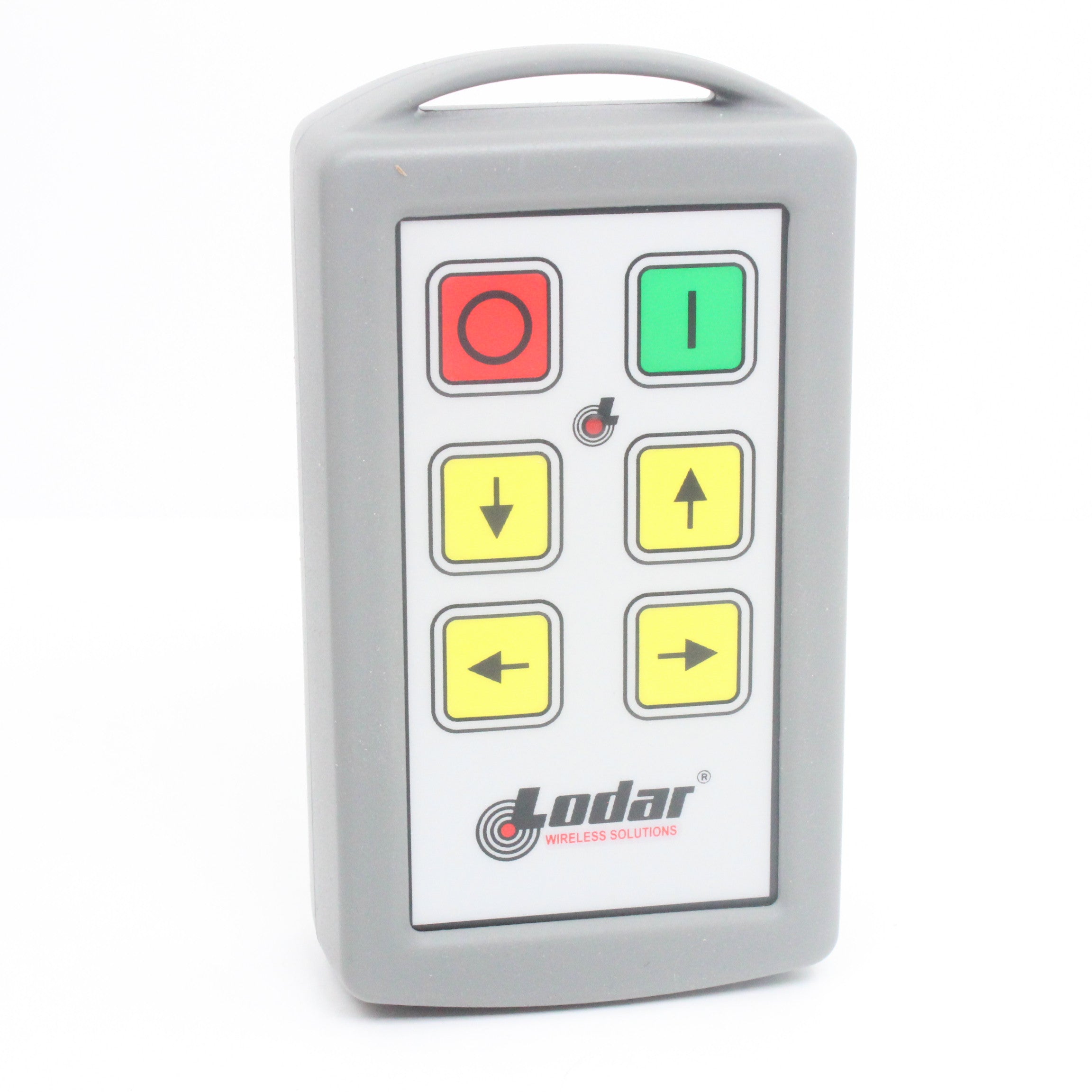

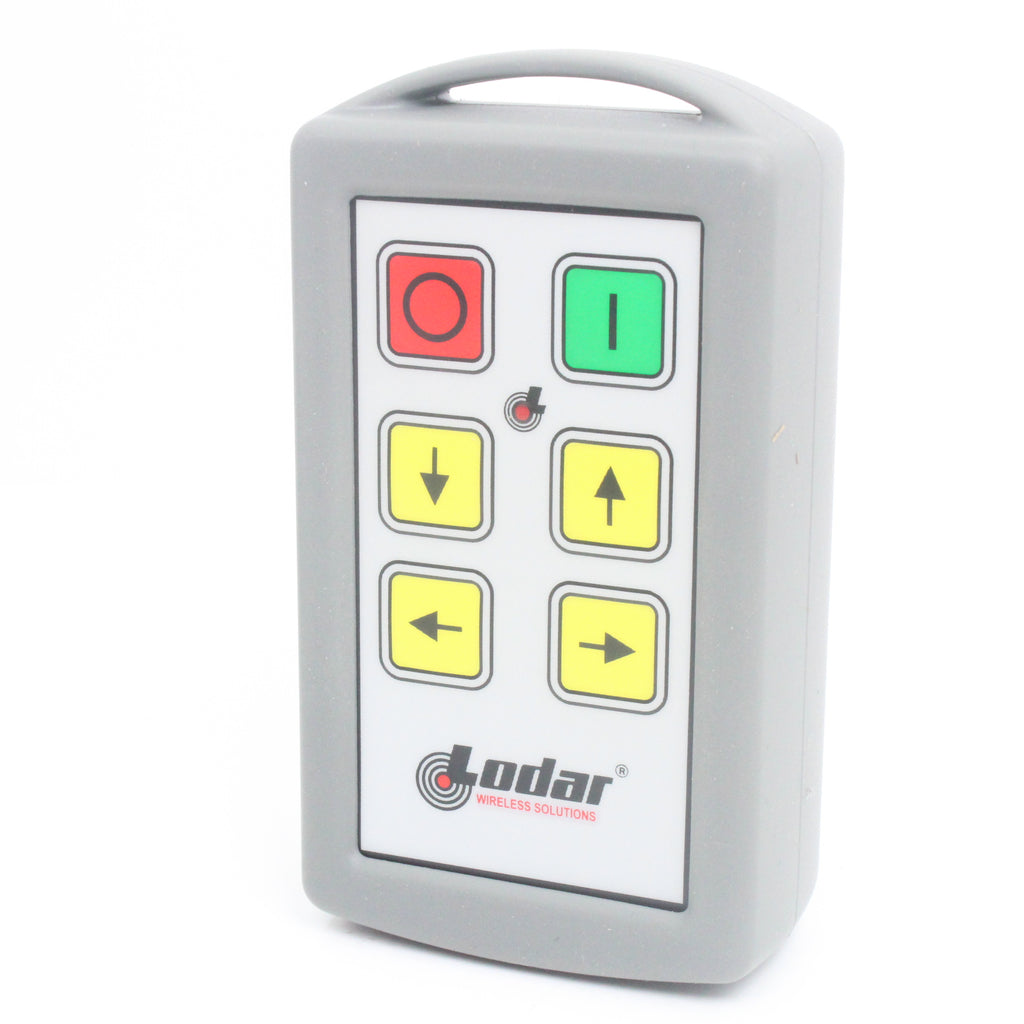

Lodar 92104-3 4 function handset front showing red stop green on and yellow arrow up down left right buttons
Lodar 92104-3 receiver top down view showing PCB layout and serial number

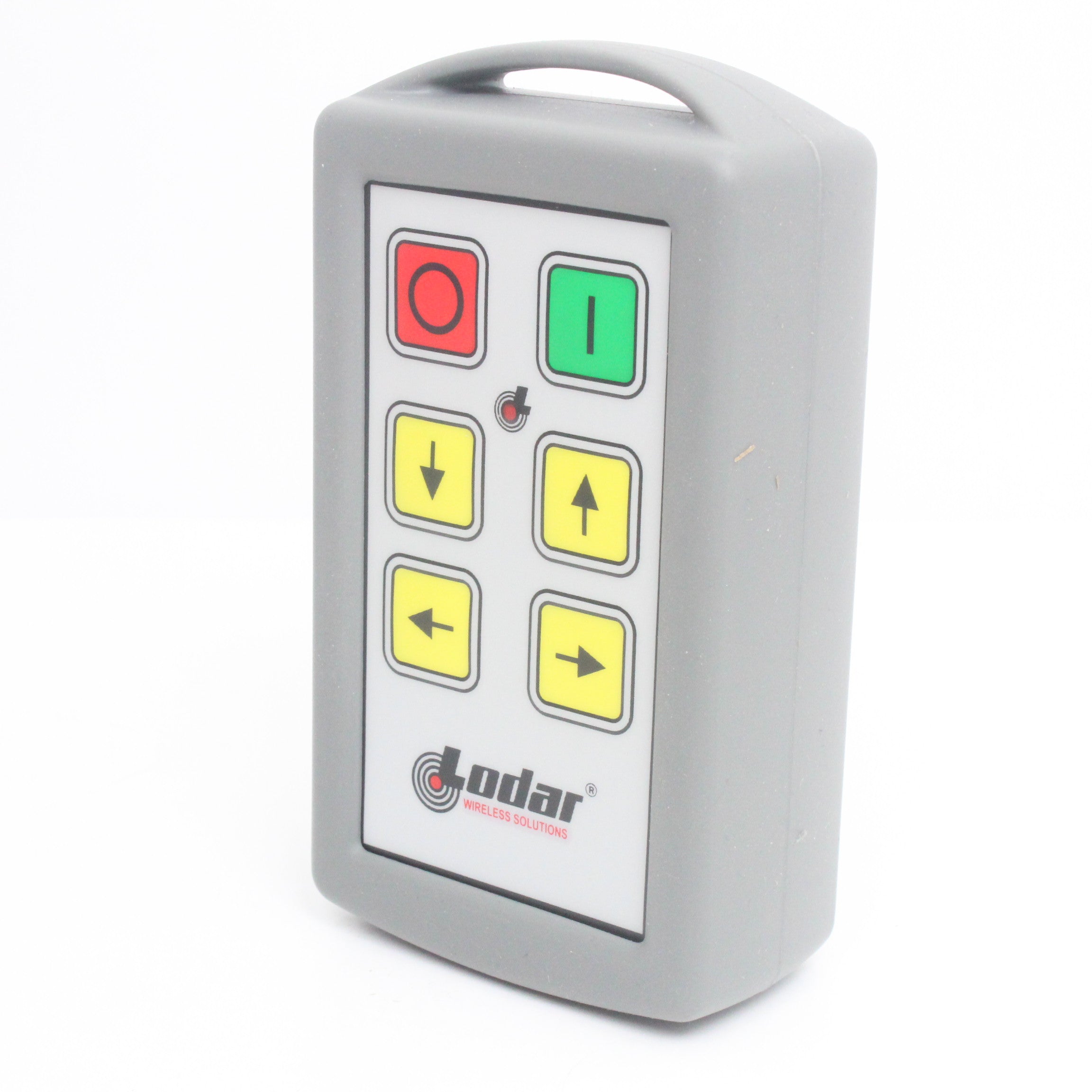

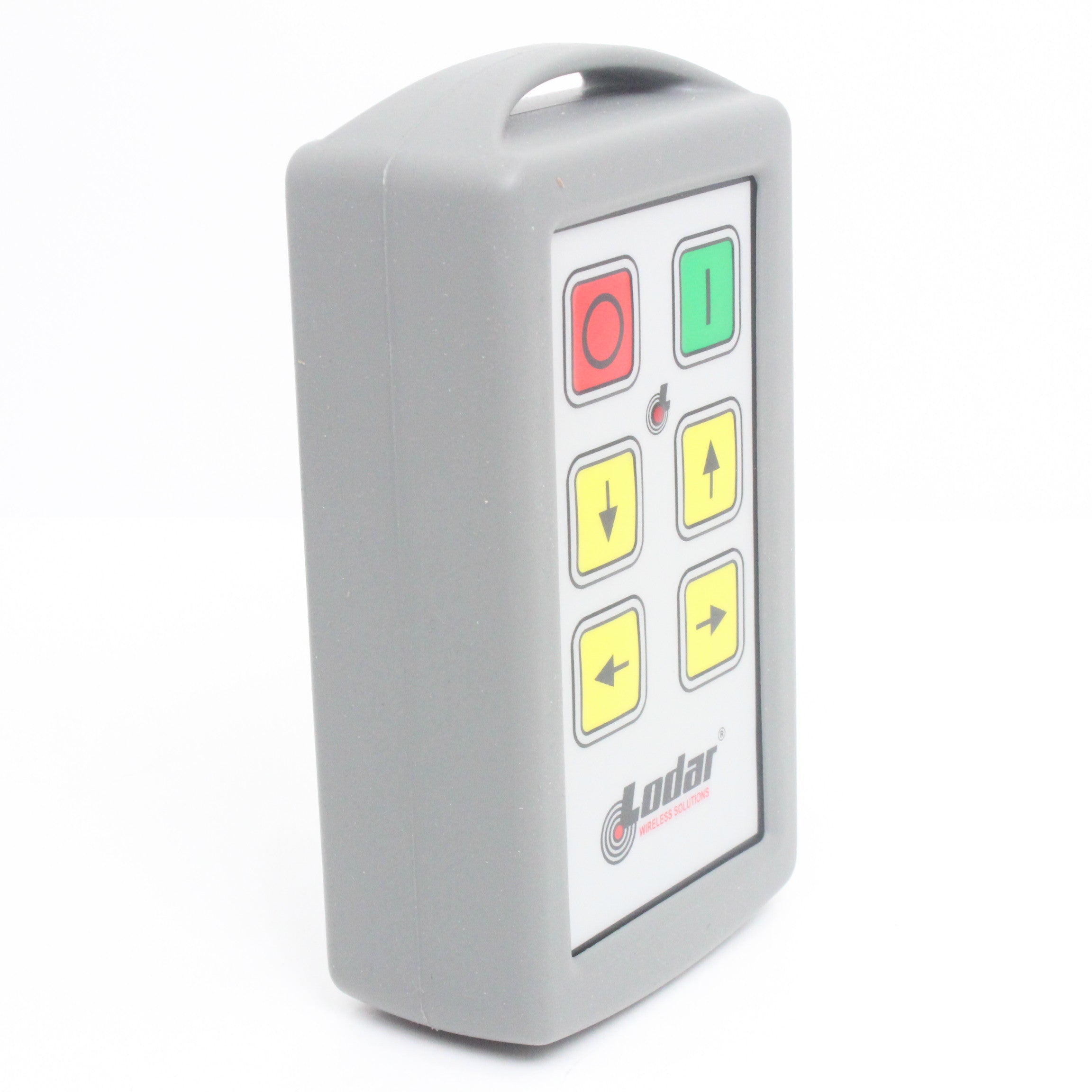

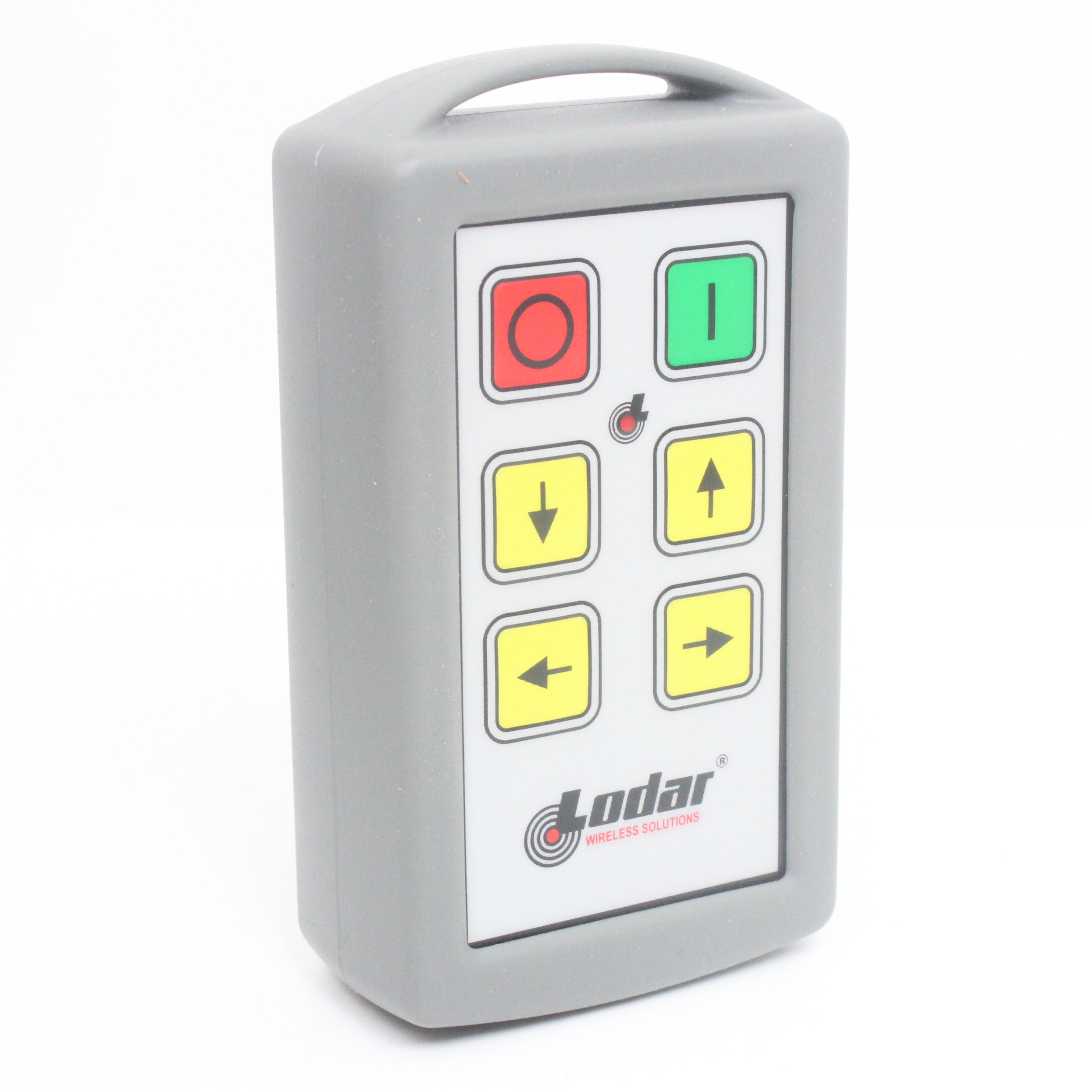

Lodar 92104-3 handset angled view showing 4 direction arrow button layout
Lodar 92104-3 receiver closed exterior view with IP rated glands
Lodar 92104-3 kit cable harness and wiring detail
Lodar 92104-3 receiver internal view showing terminal connections

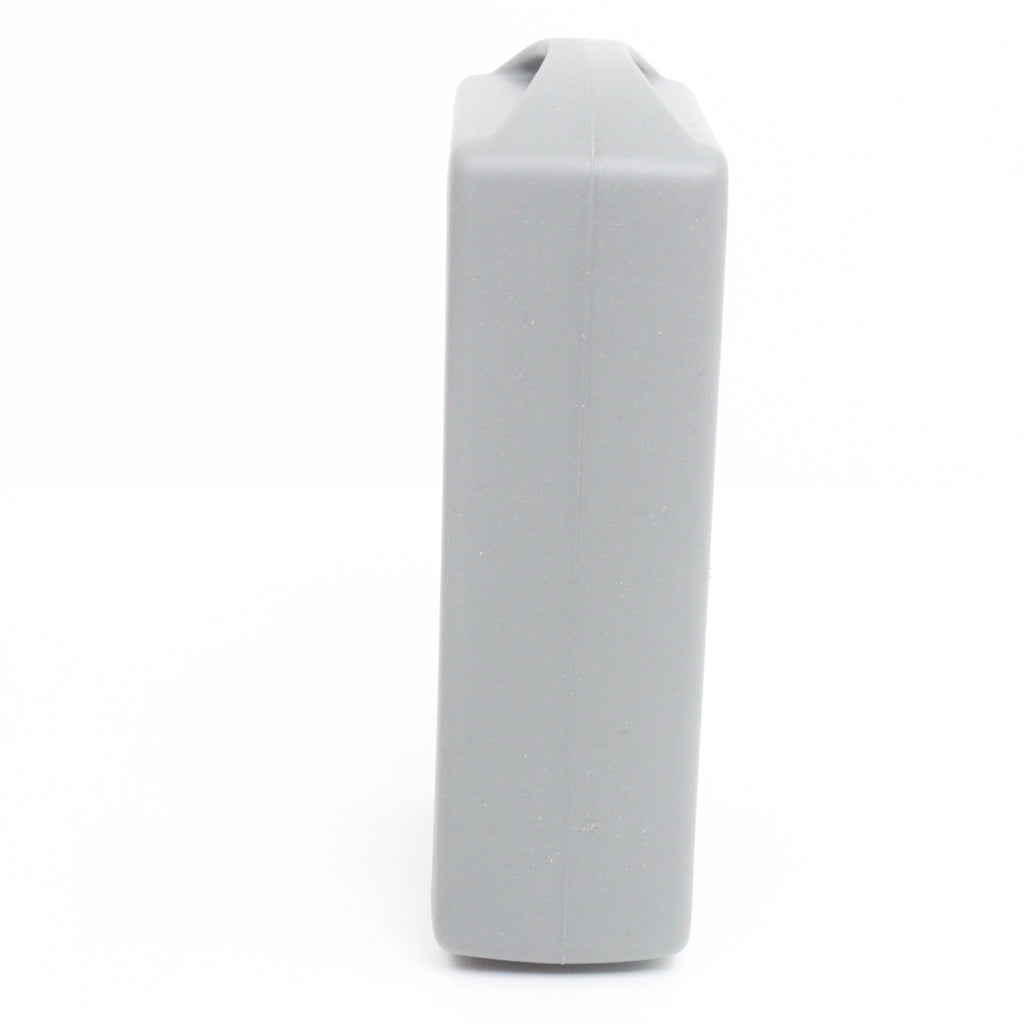

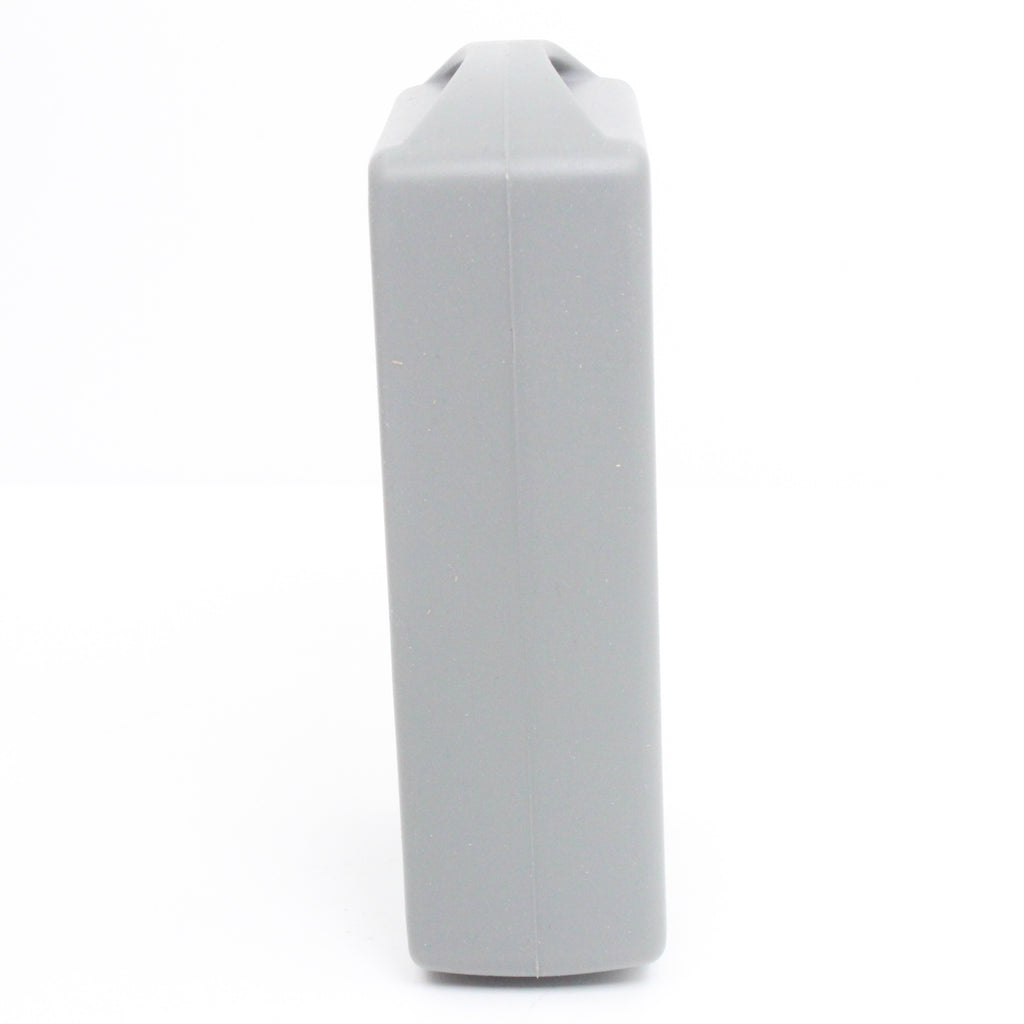

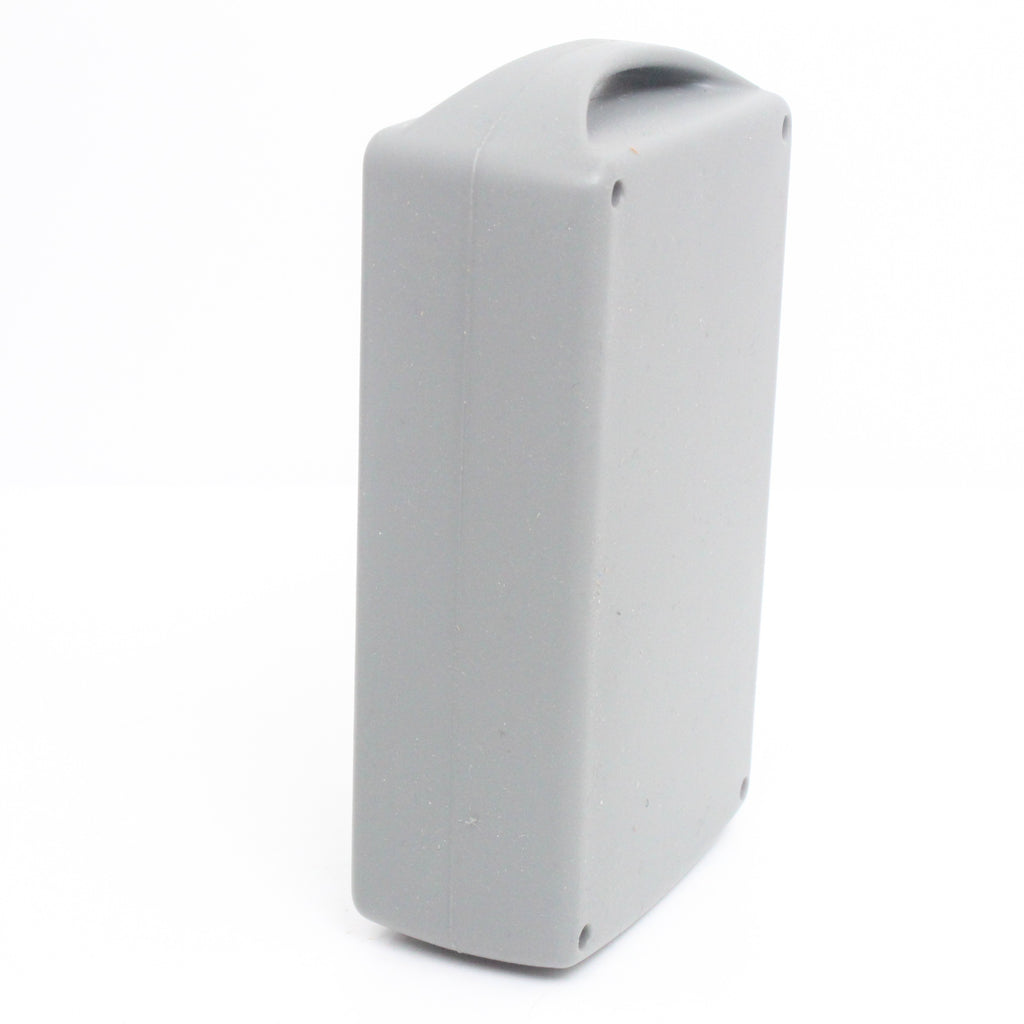

Lodar 92104-3 handset side profile showing carry loop and housing
Lodar 92104-3 4 function kit full component layout
Lodar branded lanyard included with 92104-3 4 function kit

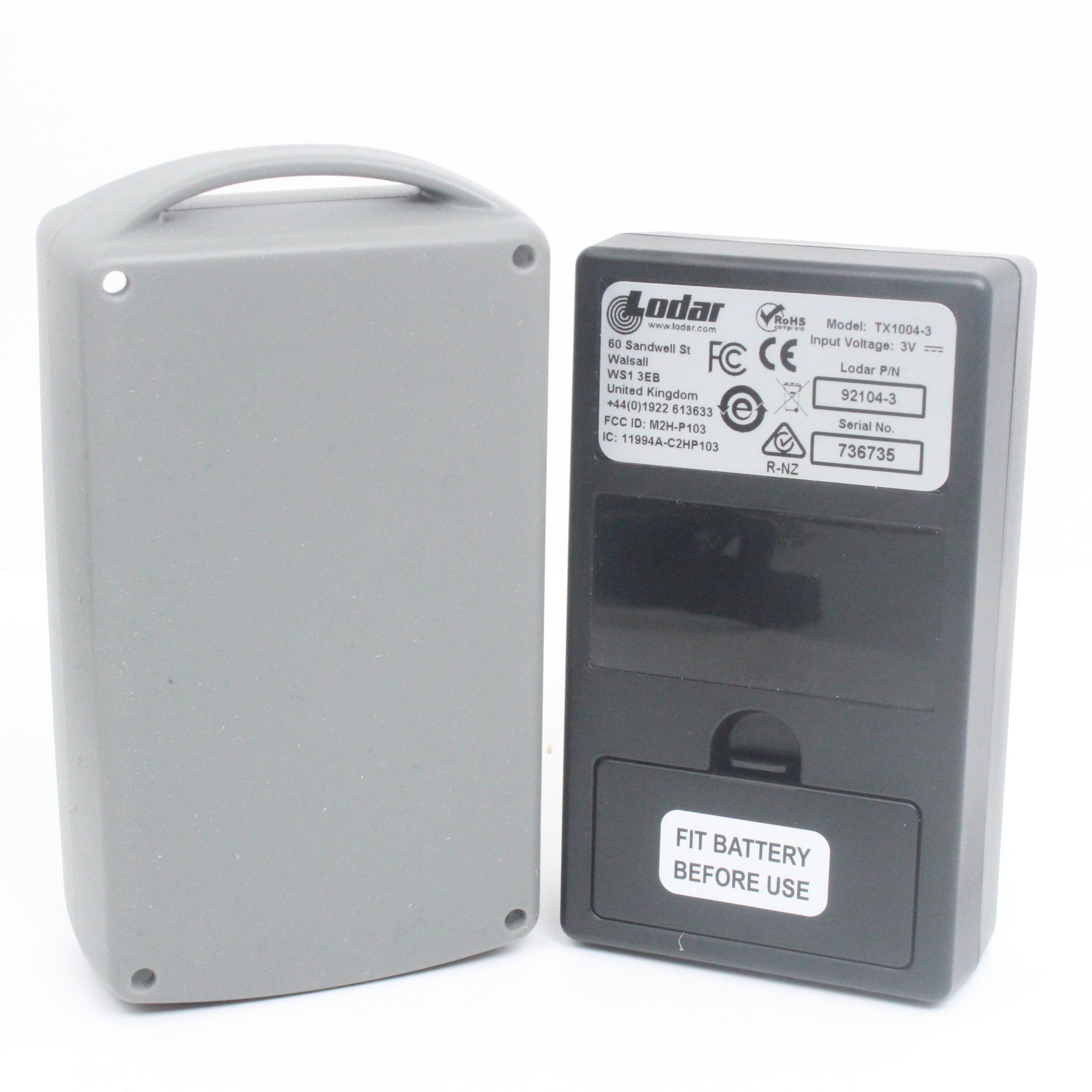

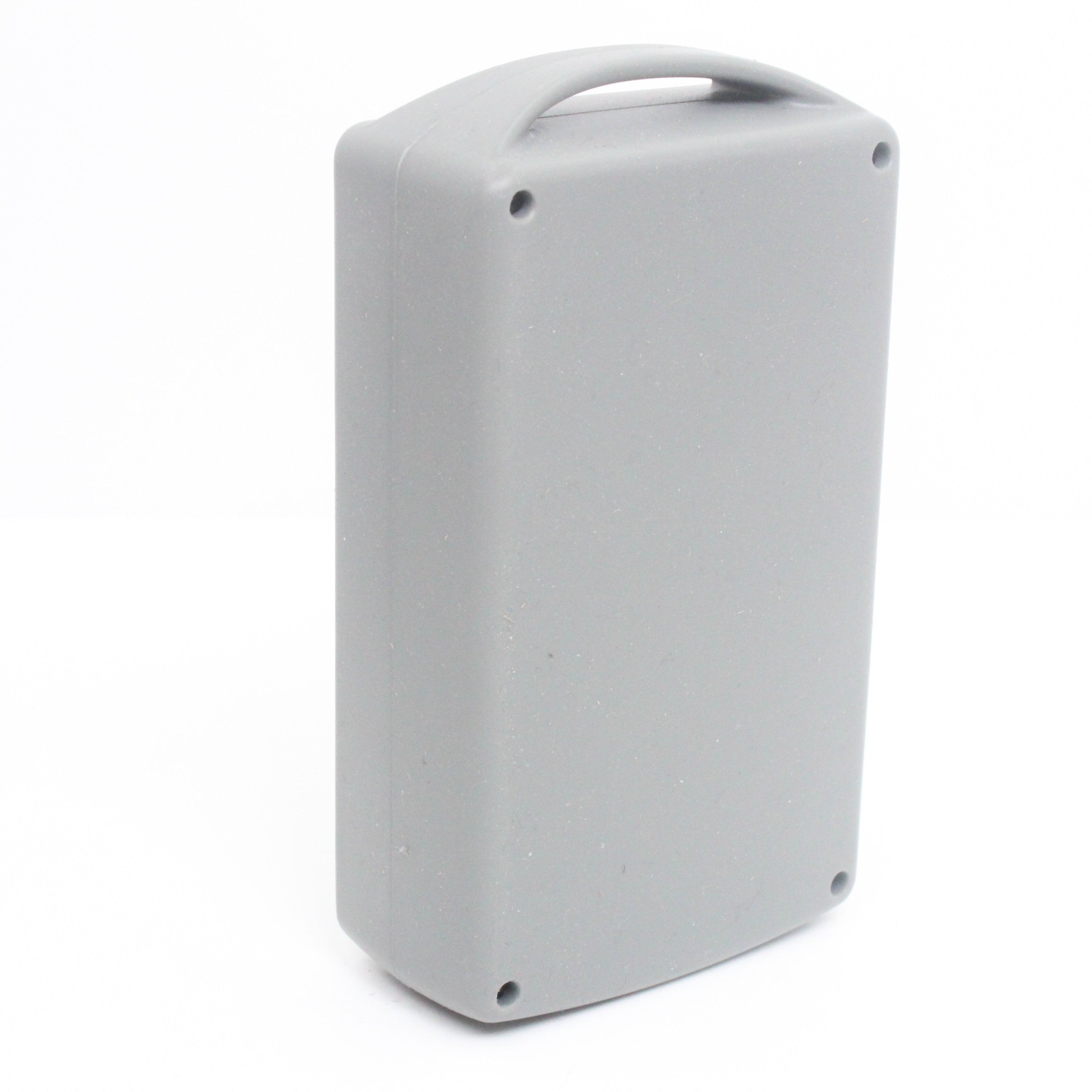

Lodar 92104-3 handset rear view showing label and battery cover
Lodar 92104-3 4 function receiver and handset paired together
Lodar 92104-3 handset button detail showing colour coded arrows
Lodar 92104-3 receiver mounting configuration and cable entry
Lodar 92104-3 4 function kit alternative angle showing all components

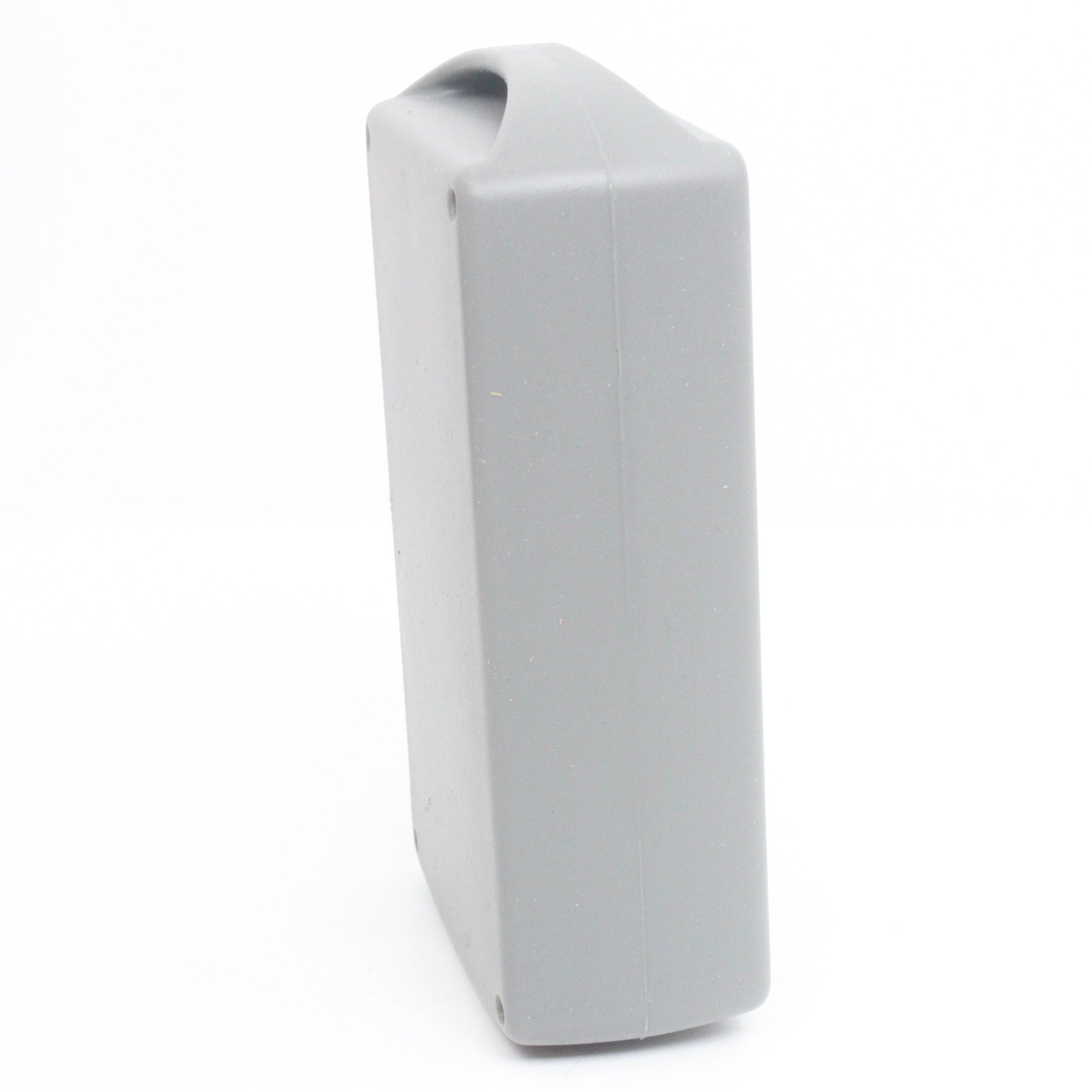

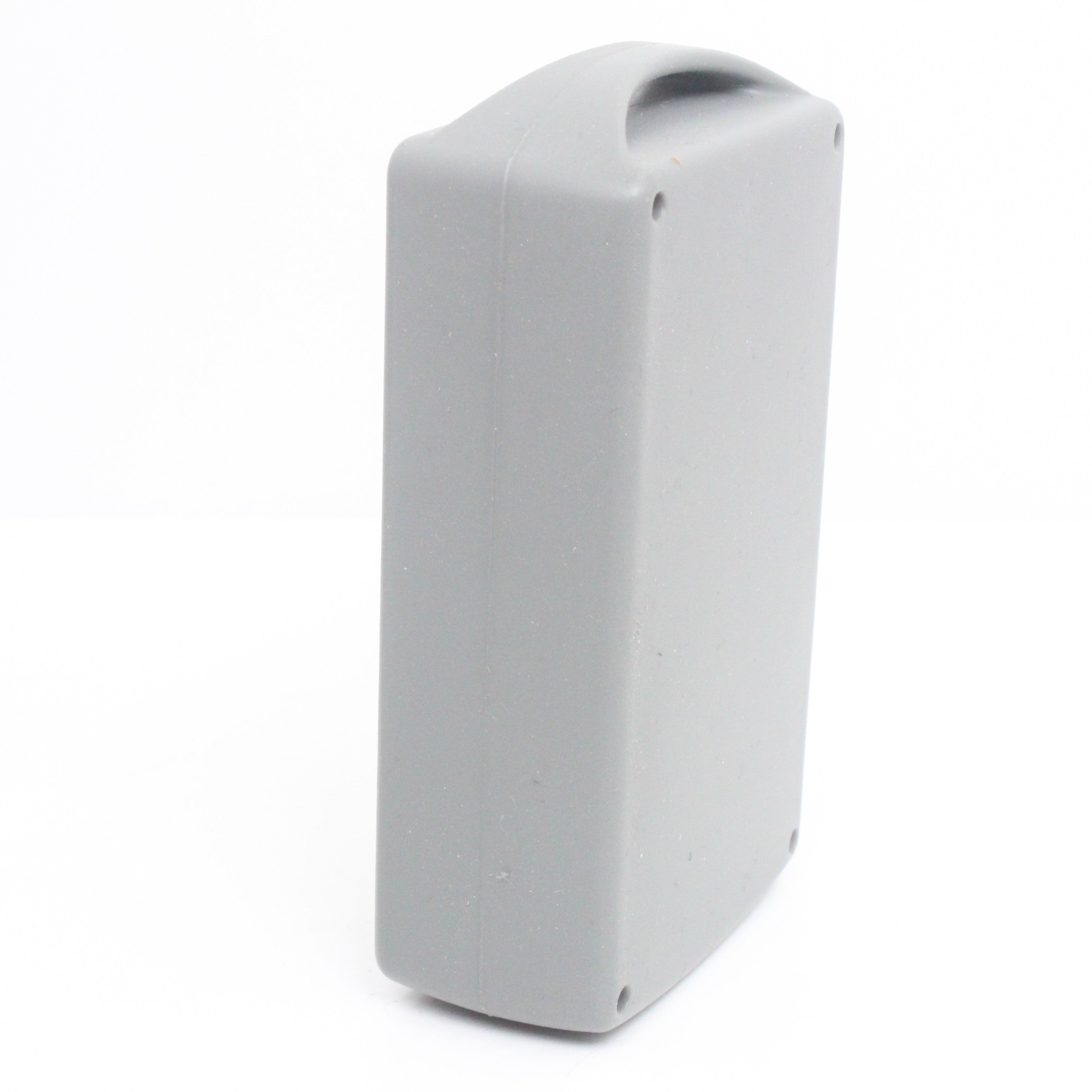

Lodar 92104-3 handset top view showing carry handle construction
Lodar 92104-3 4 function kit wiring loom showing conductor colours
Roll over image to zoom in Click on image to zoom
Lodar 92104-3 4 function wireless remote control full kit showing handset receiver box cables and lanyardLodar 92104-3 receiver unit open view showing PCB terminal blocks and wiringLodar 92104-3 4 function handset front showing red stop green on and yellow arrow up down left right buttonsLodar 92104-3 receiver top down view showing PCB layout and serial numberLodar 92104-3 handset angled view showing 4 direction arrow button layoutLodar 92104-3 receiver closed exterior view with IP rated glandsLodar 92104-3 kit cable harness and wiring detailLodar 92104-3 receiver internal view showing terminal connectionsLodar 92104-3 handset side profile showing carry loop and housingLodar 92104-3 4 function kit full component layoutLodar branded lanyard included with 92104-3 4 function kitLodar 92104-3 handset rear view showing label and battery coverLodar 92104-3 4 function receiver and handset paired togetherLodar 92104-3 handset button detail showing colour coded arrowsLodar 92104-3 receiver mounting configuration and cable entryLodar 92104-3 4 function kit alternative angle showing all componentsLodar 92104-3 handset top view showing carry handle constructionLodar 92104-3 4 function kit wiring loom showing conductor colours

Lodar 92104-3 4 Function Wireless Remote Control Kit Arrows Up/Down Left/Right

Lodar Wireless SolutionsSKU: 92104-3-13L/13R
Price (inc VAT):
£339.99

Product Overview

This Lodar 92104-3 is a complete 4-function wireless remote control system with arrow Up/Down Left/Right button layout, supplied as a full kit and ready to use straight out of the box.

  • Master output included — standard on 4-function and above
  • Handset and receiver supplied pre-paired — no setup required
  • IP rated for use in demanding outdoor environments
  • Over 16 million unique registration codes — no risk of interference from nearby systems
  • Manufactured in the UK and covered by Lodar's 5-year pro-rated warranty — well above the industry standard

This Lodar 92104-3 is a complete 4-function wireless remote control system with arrow Up/Down Left/Right button layout and master output, supplied as a full kit and ready to use straight out of the box. The handset is IP55 rated and the receiver IP66 rated, providing protection against dust ingress and water ingress from any direction, with an operating range of up to 60m (200ft) subject to local conditions and compatibility across both 12V and 24V electric systems.

The master output is standard on all 4-function and above Lodar kits, designed for applications such as hydraulic power packs and pumps where the master output enables the pump alongside directional control. The handset and receiver are supplied pre-paired and ready to use, with a pre-wired cable loom fitted to the receiver for straightforward installation. Built-in auto shutdown overload protection cuts power automatically if the system is overloaded.

Lodar handsets and receiver kits are covered by a 5-year pro-rated manufacturer's warranty — well above the industry standard. Full terms and conditions available on request. As an approved UK Lodar stockist we stock and ship genuine Lodar products direct from our own warehouse.

Whilst every effort has been made to ensure the accuracy of the information presented, specifications are subject to change without notice in the interest of ongoing technical improvement.

Compatible with 12V and 24V electric systems. Designed for four-function control applications, with master output included as standard for hydraulic power packs, pumps, or other applications requiring a master enable alongside directional control.

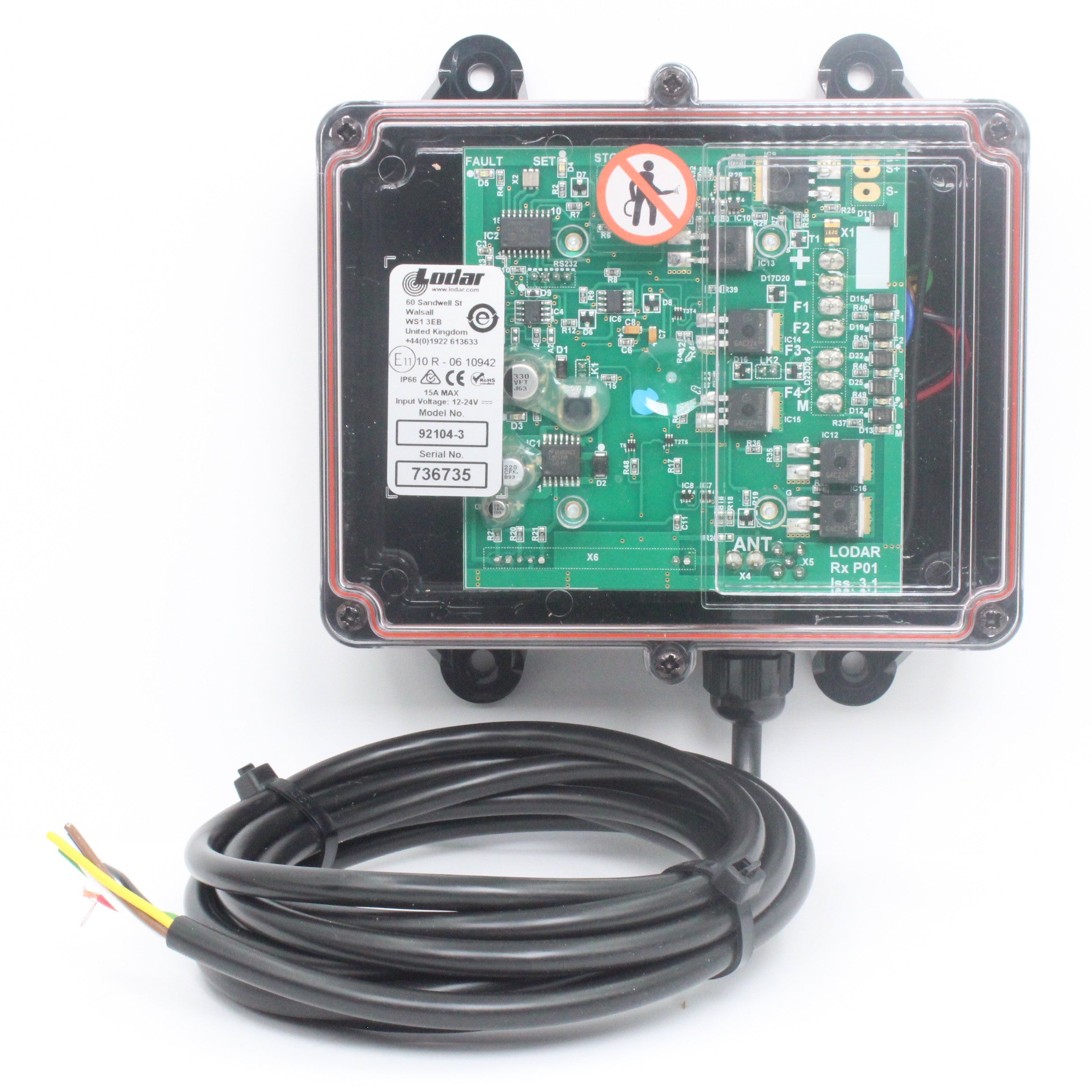

  • Lodar 92104-3 receiver unit
  • Wiring loom (pre-fitted to receiver)

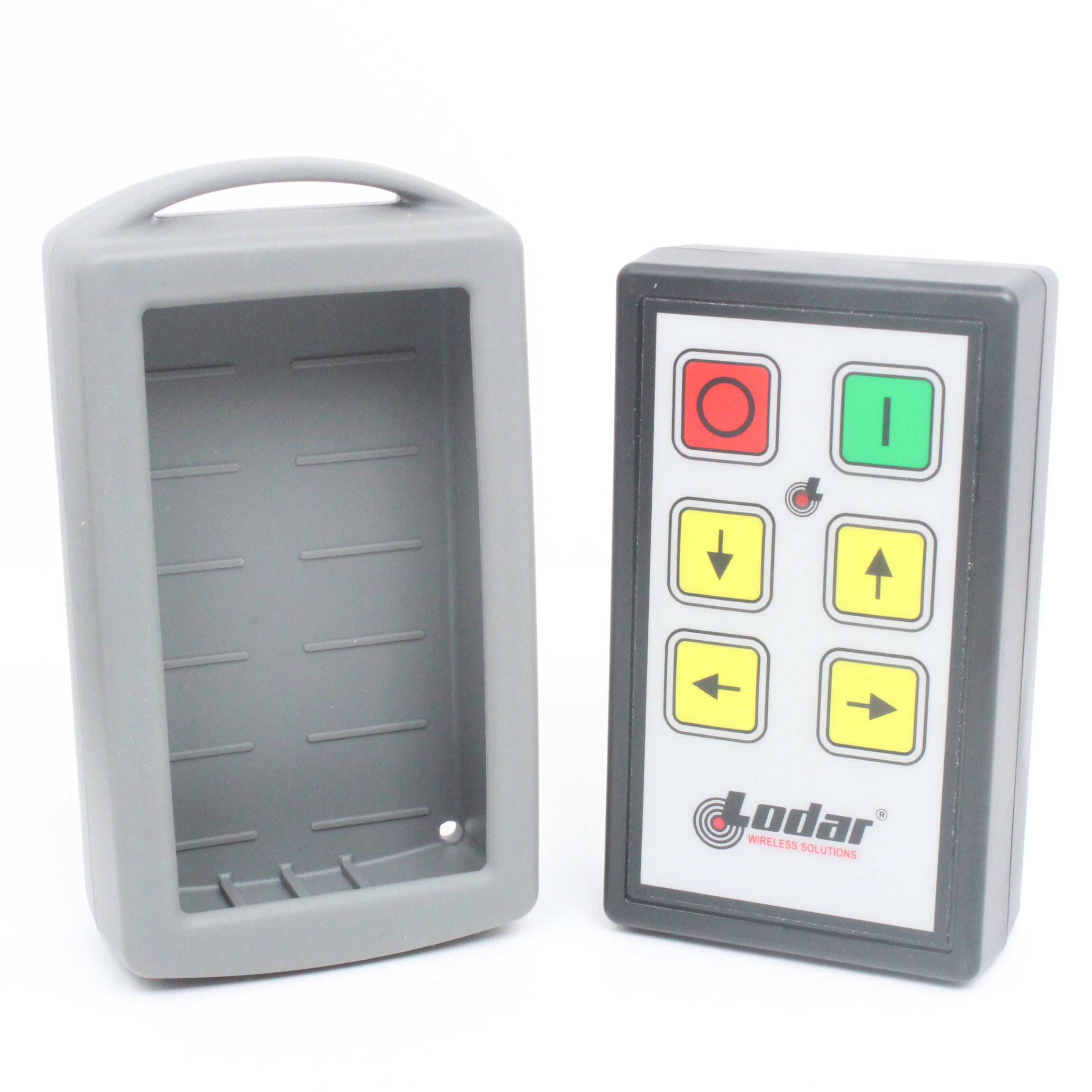

  • Lodar transmitter handset (13L/13R arrow Up/Down Left/Right inserts)
  • Silicone bumper case
  • Lanyard
  • AAA batteries (not factory fitted)
  • Installation instructions
