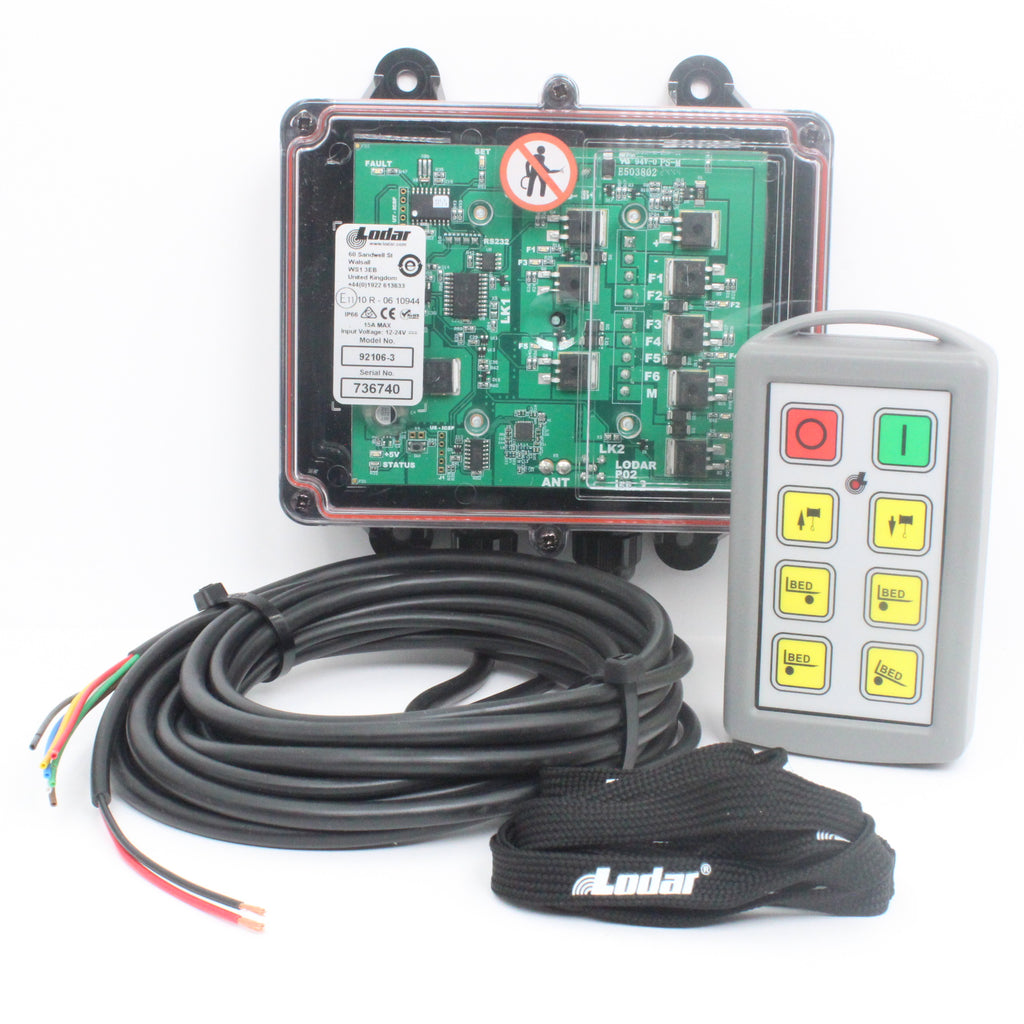

Lodar 92106-3 6 function wireless remote control kit with handset receiver box cables and lanyard
Lodar 92106K-3 external keypad receiver front view showing button panel

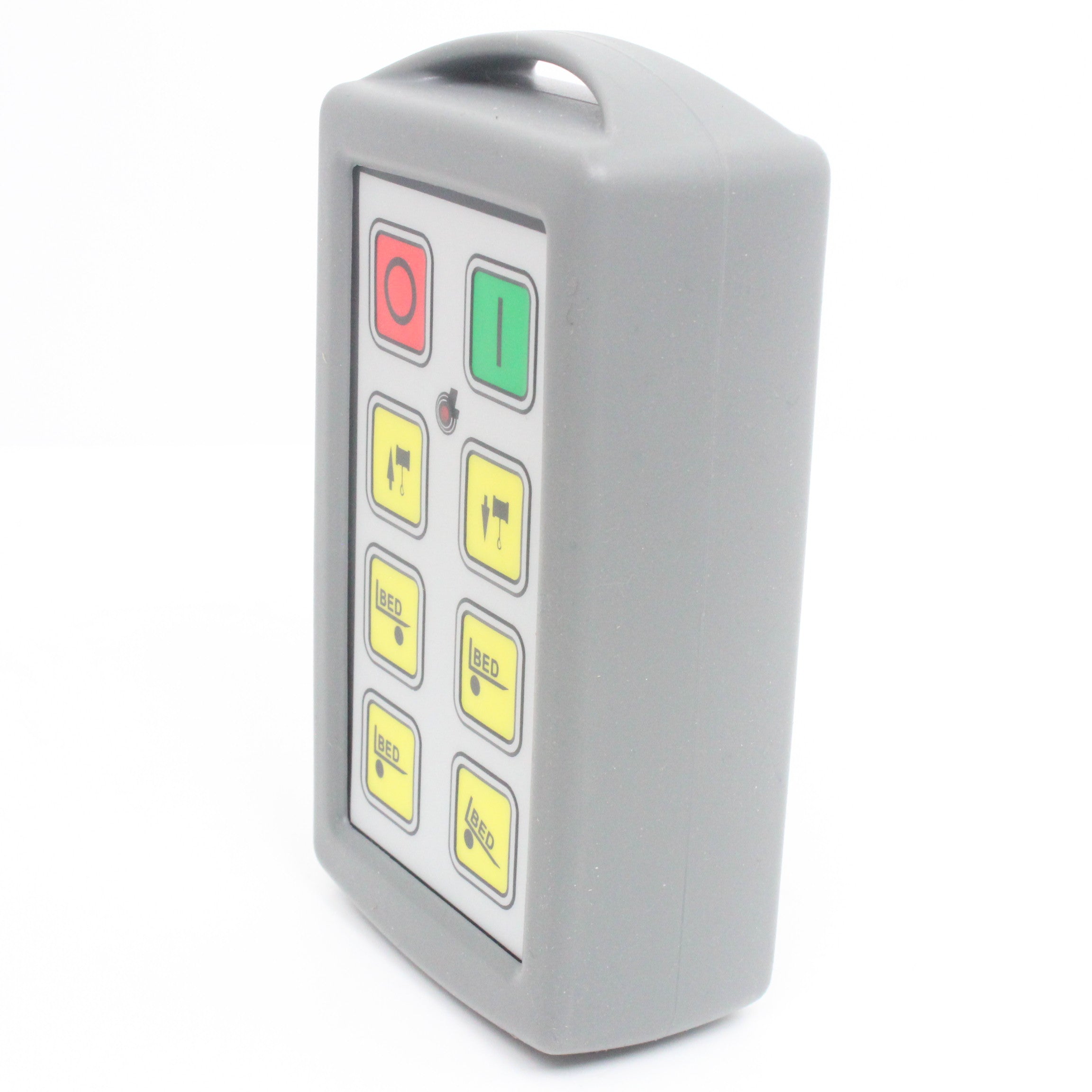

Lodar 92106-3 6 function handset front view showing winch in out and bed function buttons
Lodar 92106K-3 handset angled view showing carry handle and button layout
Lodar 92106K-3 keypad receiver closed sealed enclosure view
Lodar 92106TX-3 6 function transmitter button panel close up

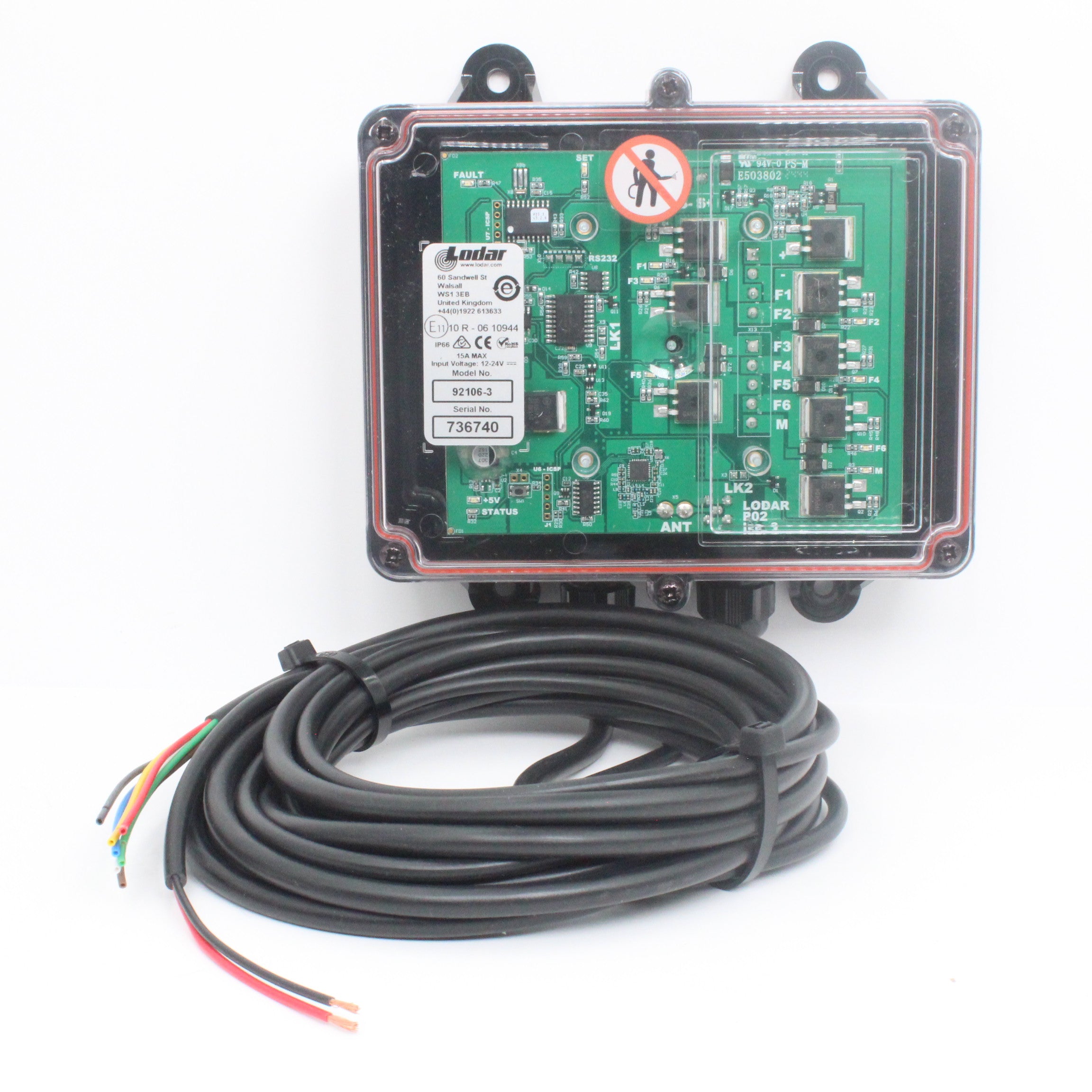

Lodar 92106K-3 receiver internal PCB showing external keypad connections
Lodar 92106TX-3 handset with lanyard showing carry method
Lodar 92106TX-3 replacement transmitter without bumper case
Lodar 92106TX-3 close up showing winch in out and bed button insert symbols
Lodar 92106TX-3 handset bottom view showing connector point
Lodar 92106TX-3 handset robust IP rated housing detail
Lodar 92106TX-3 handset top view showing carry handle loop
Lodar 92106TX-3 replacement handset alternative front angle
Lodar 92106TX-3 6 function transmitter showing status LED
Lodar 92106-3 6 function kit showing alternative component angle
Lodar 92106TX-3 replacement handset size reference

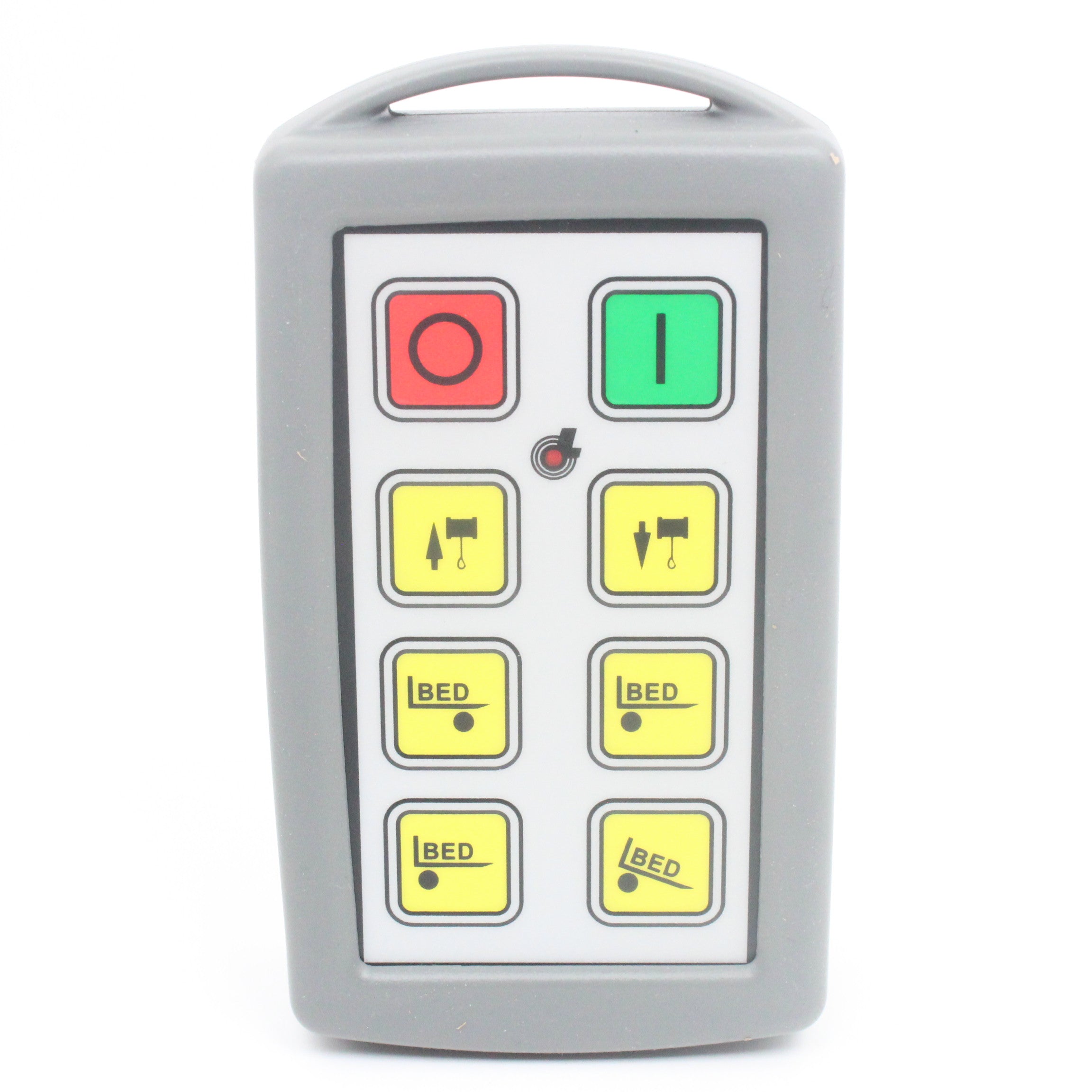

Lodar 92106TX-3 handset front view showing red stop green on and yellow winch bed function buttons
Roll over image to zoom in Click on image to zoom
Lodar 92106-3 6 function wireless remote control kit with handset receiver box cables and lanyardLodar 92106K-3 external keypad receiver front view showing button panelLodar 92106-3 6 function handset front view showing winch in out and bed function buttonsLodar 92106K-3 handset angled view showing carry handle and button layoutLodar 92106K-3 keypad receiver closed sealed enclosure viewLodar 92106TX-3 6 function transmitter button panel close upLodar 92106K-3 receiver internal PCB showing external keypad connectionsLodar 92106TX-3 handset with lanyard showing carry methodLodar 92106TX-3 replacement transmitter without bumper caseLodar 92106TX-3 close up showing winch in out and bed button insert symbolsLodar 92106TX-3 handset bottom view showing connector pointLodar 92106TX-3 handset robust IP rated housing detailLodar 92106TX-3 handset top view showing carry handle loopLodar 92106TX-3 replacement handset alternative front angleLodar 92106TX-3 6 function transmitter showing status LEDLodar 92106-3 6 function kit showing alternative component angleLodar 92106TX-3 replacement handset size referenceLodar 92106TX-3 handset front view showing red stop green on and yellow winch bed function buttons

Lodar 92106-3 6 Function Wireless Remote Control Tilt Slide Spec Kit

Lodar Wireless SolutionsSKU: 92106-3-1L/1R
Price (inc VAT):
£399.99

Product Overview

This Lodar 92106-3 is a complete 6-function wireless remote control kit configured for tilt and slide spec lift recovery applications, supplied as a full kit and ready to use straight out of the box.

  • Master output included — standard on 4-function and above
  • IP55 rated handset and IP66 rated receiver — protection against dust and water ingress
  • 1L/1R tilt and slide spec button inserts — suited to recovery vehicle tilt and slide applications
  • Handset and receiver supplied pre-paired with wiring loom pre-fitted — straightforward installation
  • Manufactured in the UK and covered by Lodar's 5-year pro-rated warranty — well above the industry standard

This Lodar 92106-3 is a complete 6-function wireless remote control kit configured for tilt and slide spec lift recovery applications, supplied as a full kit and ready to use straight out of the box. The handset is IP55 rated and the receiver IP66 rated, providing protection against dust ingress and water ingress from any direction, with an operating range of up to 60m (200ft) subject to local conditions and compatibility across both 12V and 24V electric systems.

Master output is standard on all 4-function and above Lodar kits and is included here, designed for applications such as hydraulic power packs and pumps where the master output enables the pump alongside the directional controls. The handset and receiver are supplied pre-paired with the wiring loom pre-fitted to the receiver for direct fit. Built-in auto shutdown overload protection cuts power automatically if the system is overloaded.

Lodar handsets and receiver kits are covered by a 5-year pro-rated manufacturer's warranty — well above the industry standard. Full terms and conditions available on request. As an approved UK Lodar stockist we stock and ship genuine Lodar products direct from our own warehouse.

Whilst every effort has been made to ensure the accuracy of the information presented, specifications are subject to change without notice in the interest of ongoing technical improvement.

Compatible with 12V and 24V electric systems. Designed for 6-function control applications, with master output included as standard for hydraulic power packs, pumps, or other applications requiring a master enable alongside directional control. Configured with 1L/1R tilt and slide spec lift button inserts — suited to recovery vehicle tilt and slide applications.
  • Lodar 92106-3 receiver unit
  • Wiring loom (pre-fitted to receiver)
  • Lodar transmitter handset (1L/1R tilt and slide spec inserts)
  • Silicone bumper case
  • Lanyard
  • AAA batteries (not factory fitted)
  • Installation instructions
