Product Overview

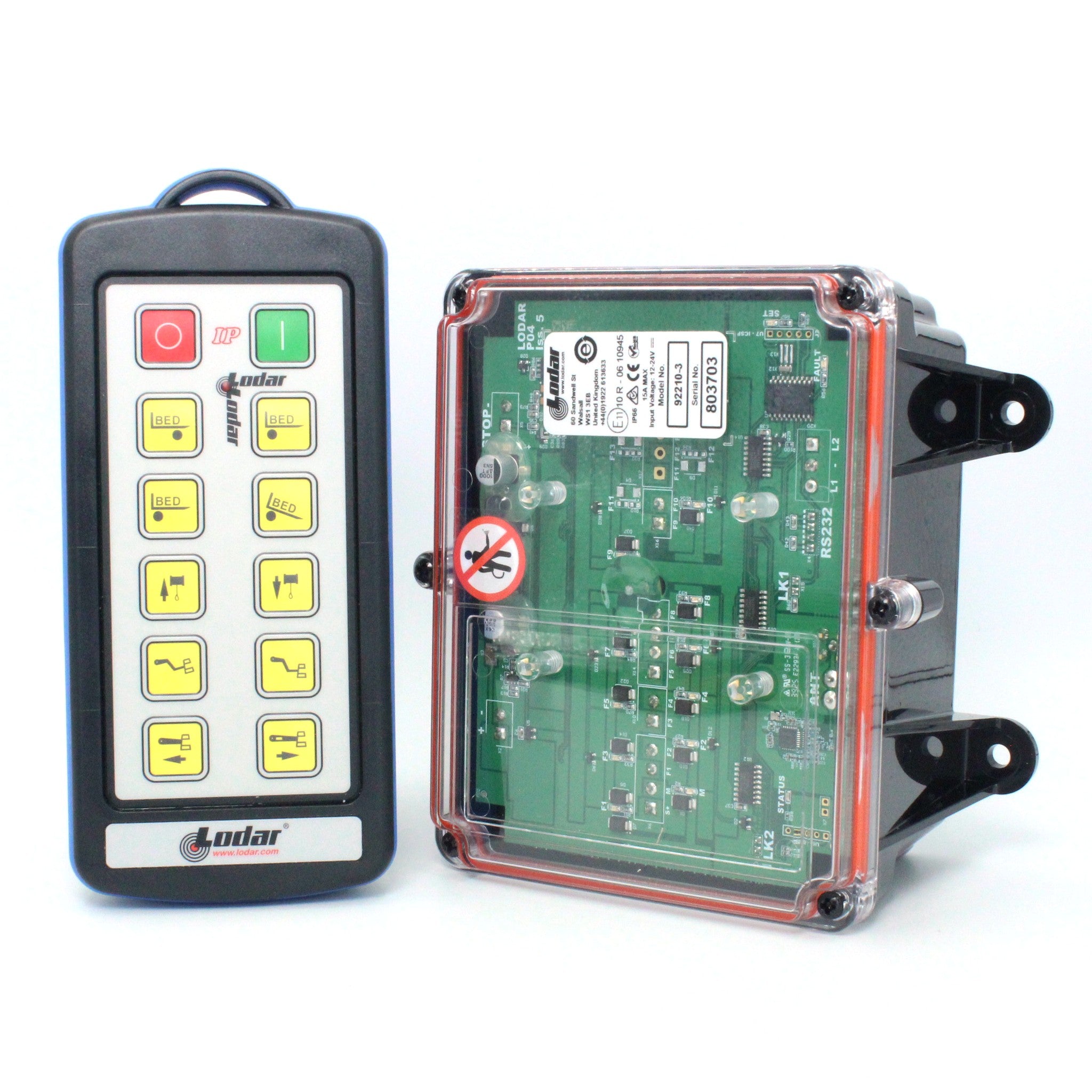

This Lodar 92210-3 is a complete 10-function wireless remote control kit configured for tilt and slide spec lift recovery applications, supplied ready to use straight out of the box.
- Master output included — standard on 4-function and above
- IP65 rated handset and IP66 rated receiver — protected against dust and water from any direction
- Handset and receiver supplied pre-paired — no setup required
- Wiring loom not included — receiver designed for direct termination to suit your installation, up to 15 amps total switching capacity
- Manufactured in the UK and covered by Lodar's 5-year pro-rated warranty — well above the industry standard
This Lodar 92210-3 is a complete 10-function wireless remote control kit configured for tilt and slide spec lift recovery applications, supplied ready to use straight out of the box. The IP65-rated handset offers higher ingress protection than the standard Lodar transmitter range, suited to outdoor and demanding environments. The receiver is IP66 rated and provides 15 amps of switching capacity — that is, 15 amps through one output, or smaller currents distributed across multiple outputs. Operating range is up to 60m (200ft) subject to local conditions, with compatibility across both 12V and 24V electric systems.
Master output is standard on all 4-function and above Lodar kits and is included here, configurable for either Continuous mode (active when the SET button is pressed, off when STOP is pressed) or Parallel mode (active only when a function is operated) via the jumper inside the receiver. The handset and receiver are supplied pre-paired and ready to use. This kit does not include a wiring loom — the receiver is designed for direct termination of user-specified cable to suit the install. Built-in auto shutdown overload protection cuts power automatically if the system is overloaded, with a safety time-out after 30 minutes of inactivity.
Lodar handsets and receiver kits are covered by a 5-year pro-rated manufacturer's warranty — well above the industry standard. Full terms and conditions available on request. As an approved UK Lodar stockist we stock and ship genuine Lodar products direct from our own warehouse.
Whilst every effort has been made to ensure the accuracy of the information presented, specifications are subject to change without notice in the interest of ongoing technical improvement.
Wiring loom not included — receiver is designed for direct cable termination to suit your installation requirements.

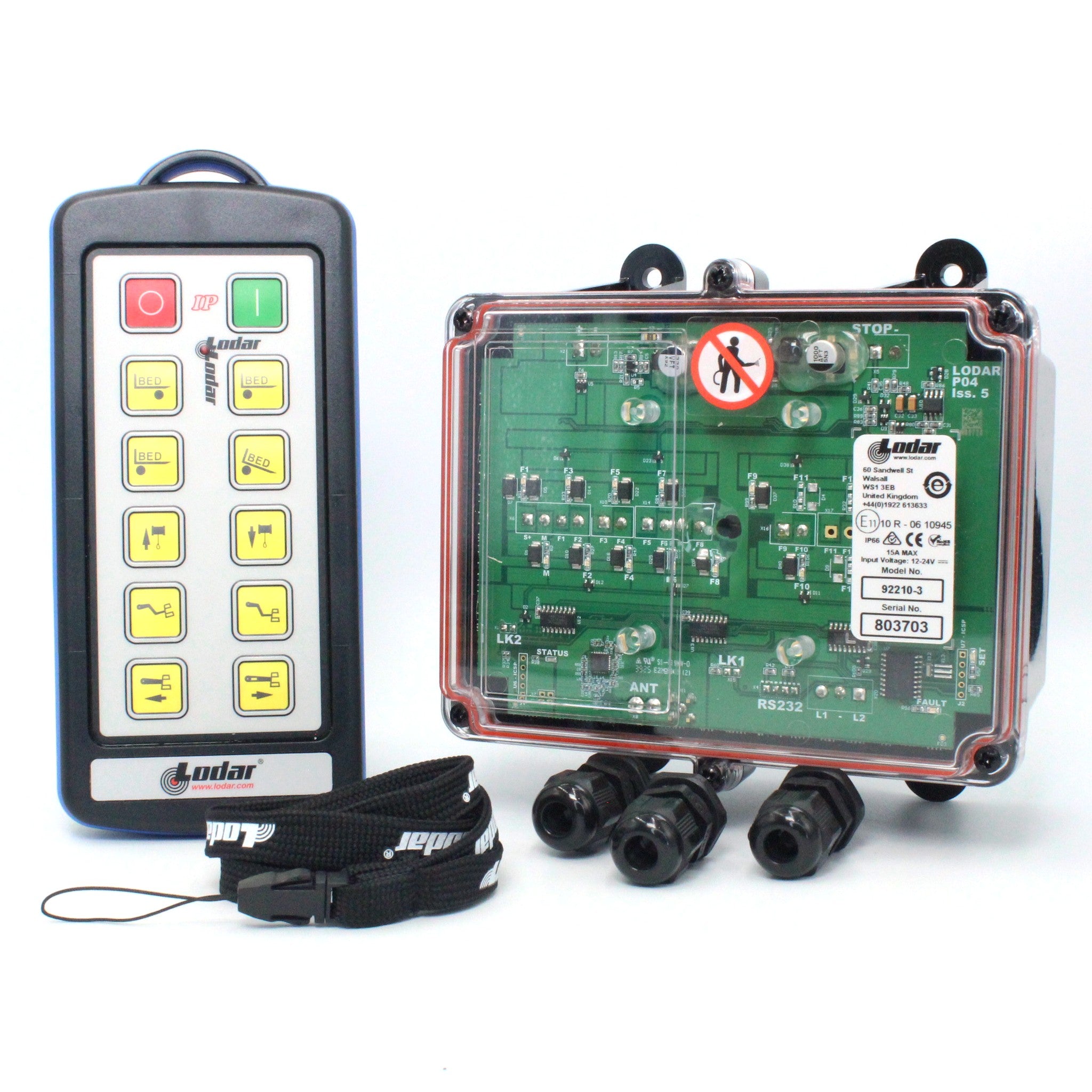

- Lodar 92210-3 receiver unit (15 amp, IP66)

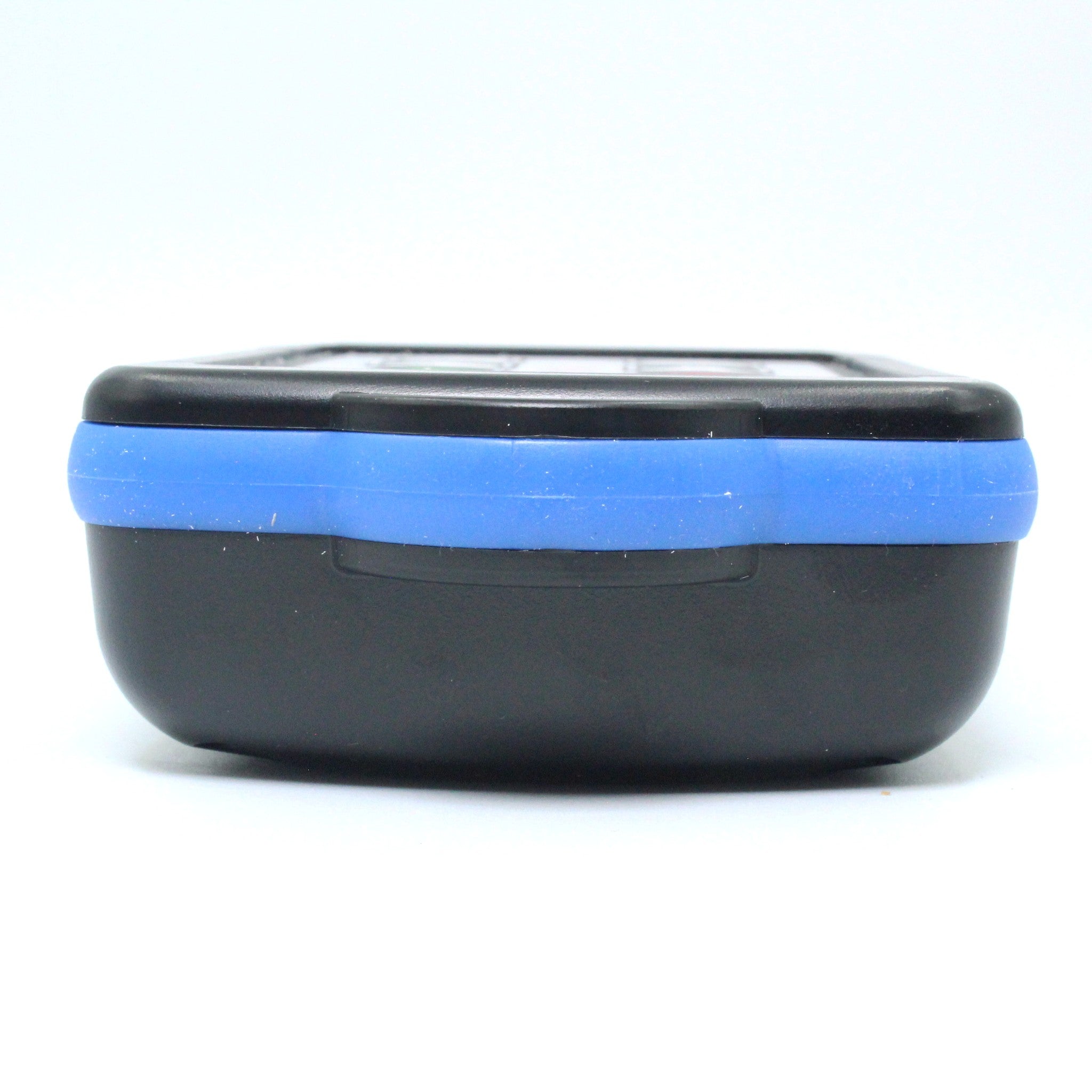

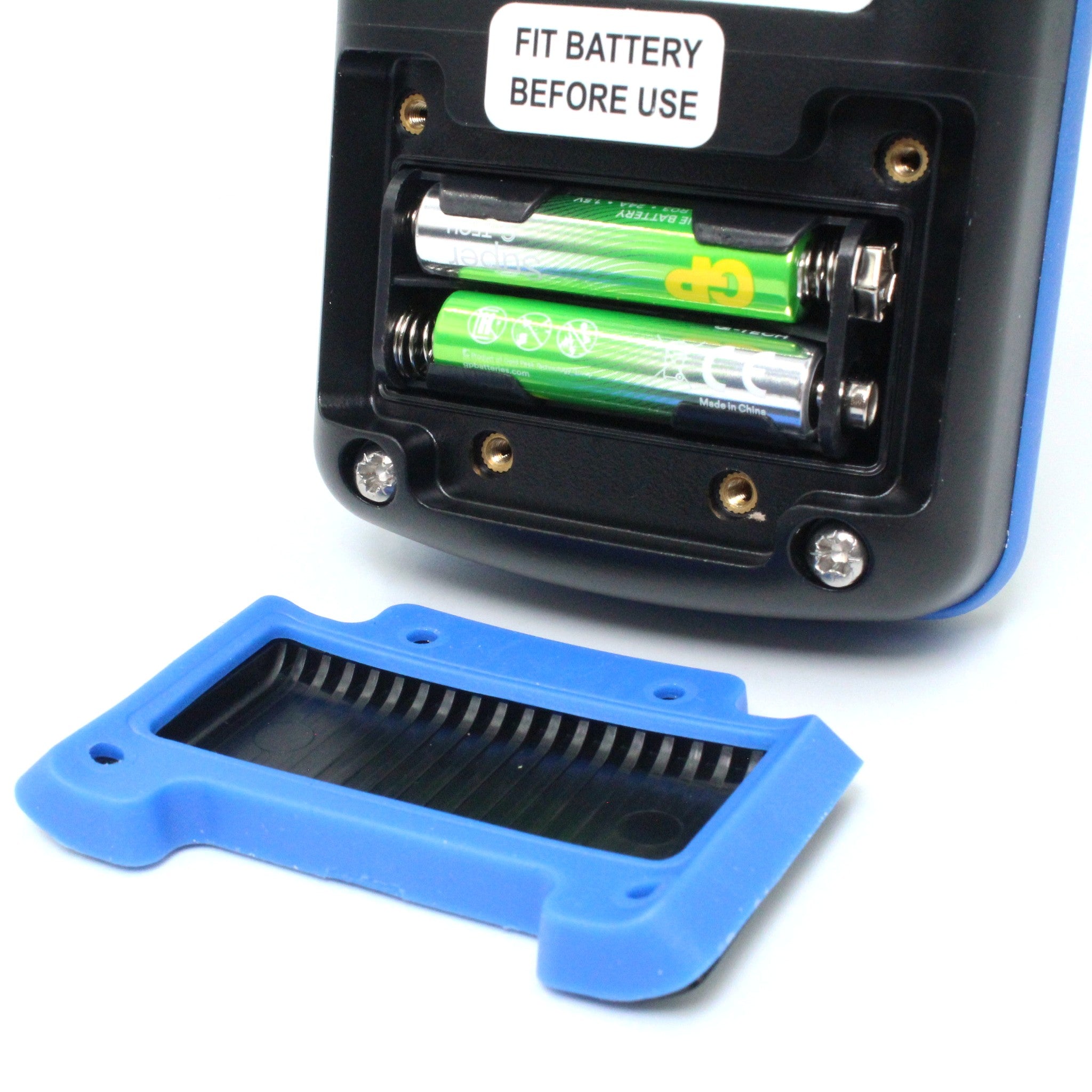

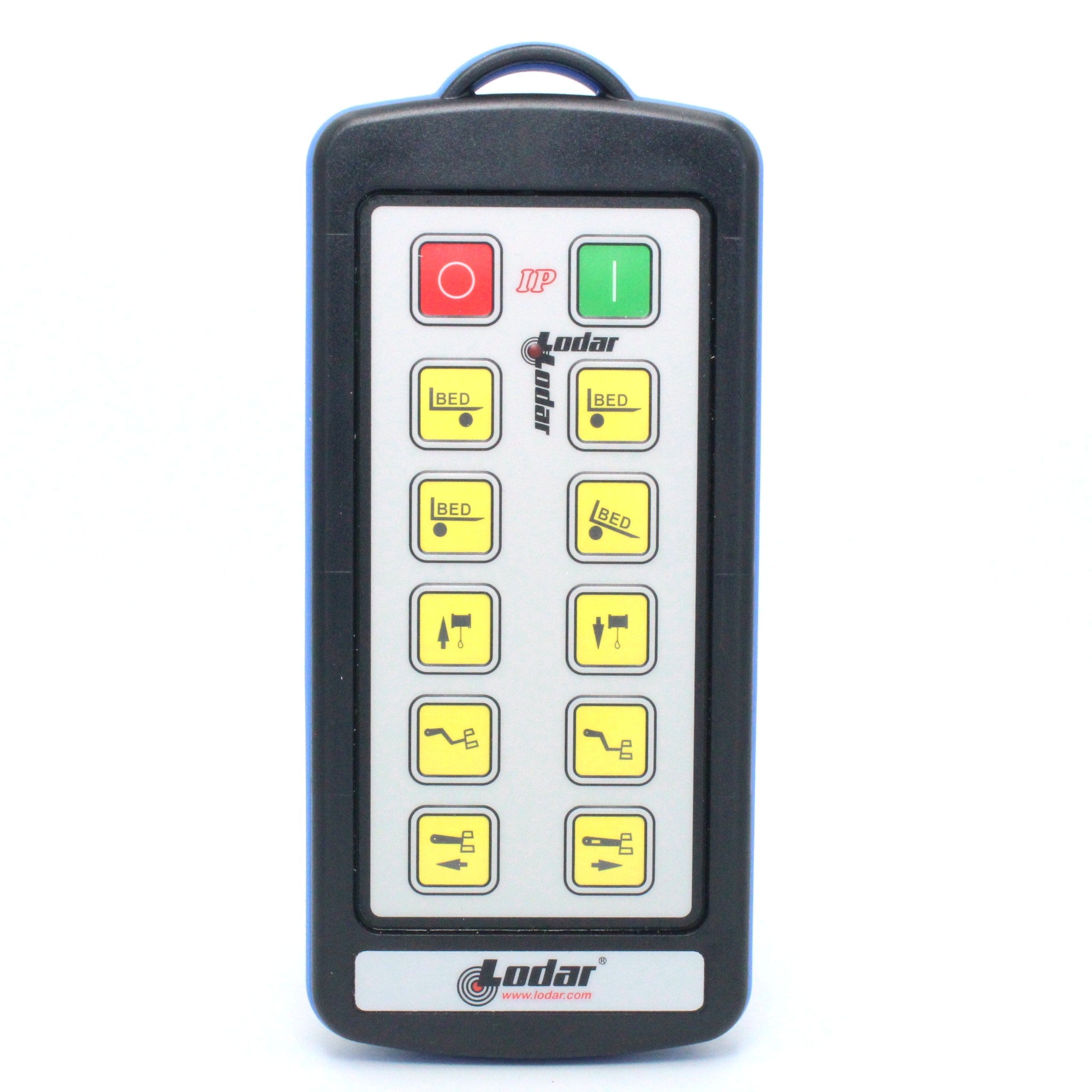

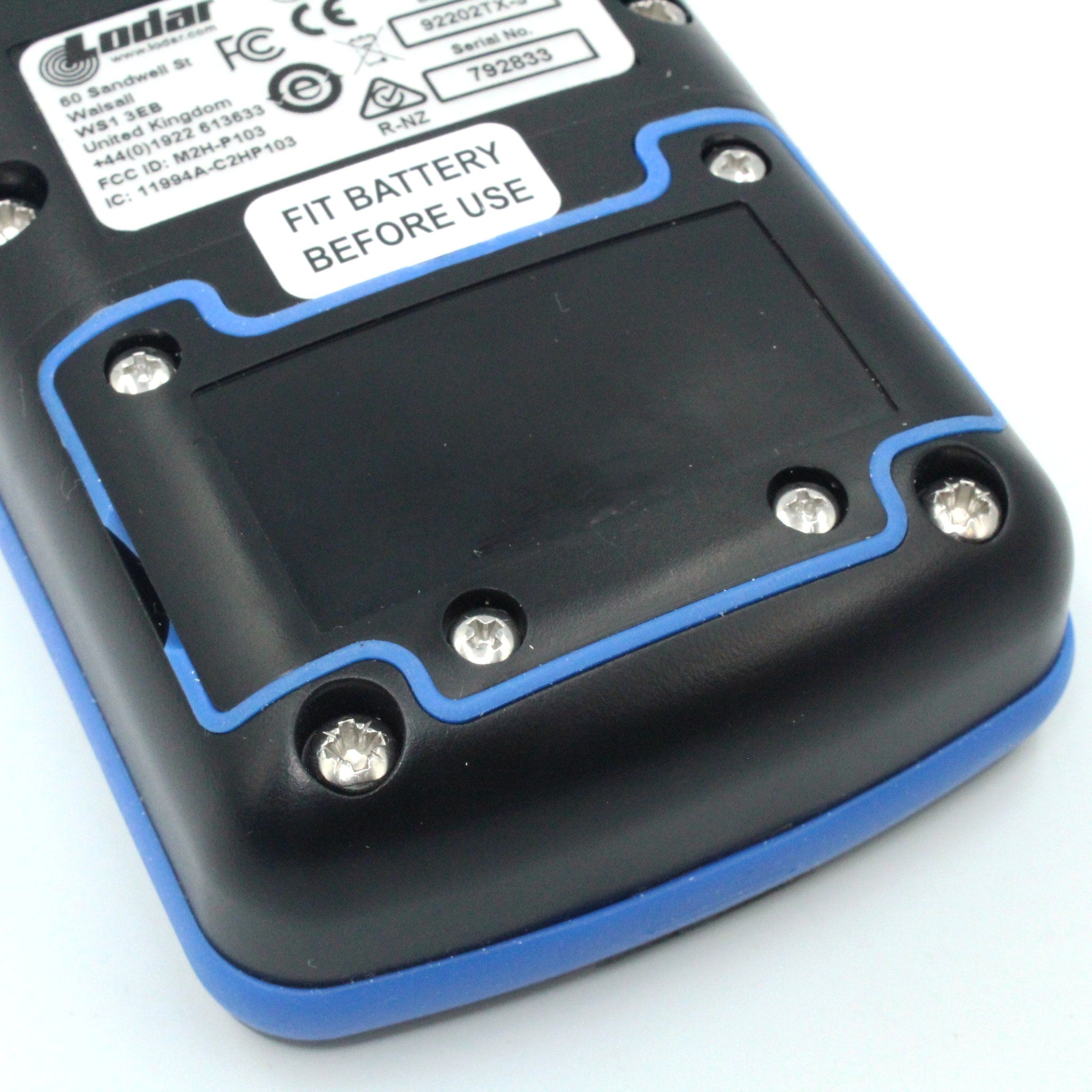

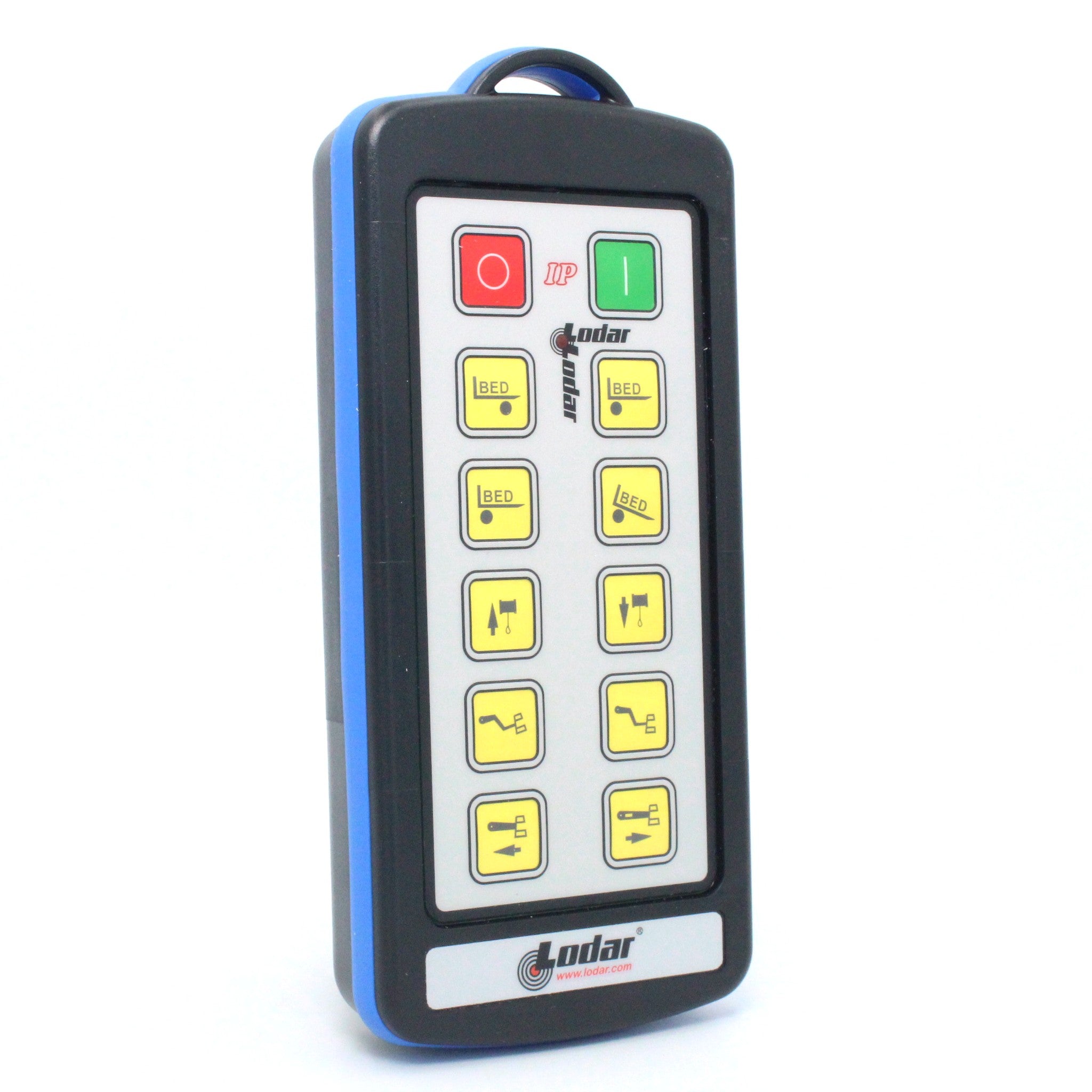

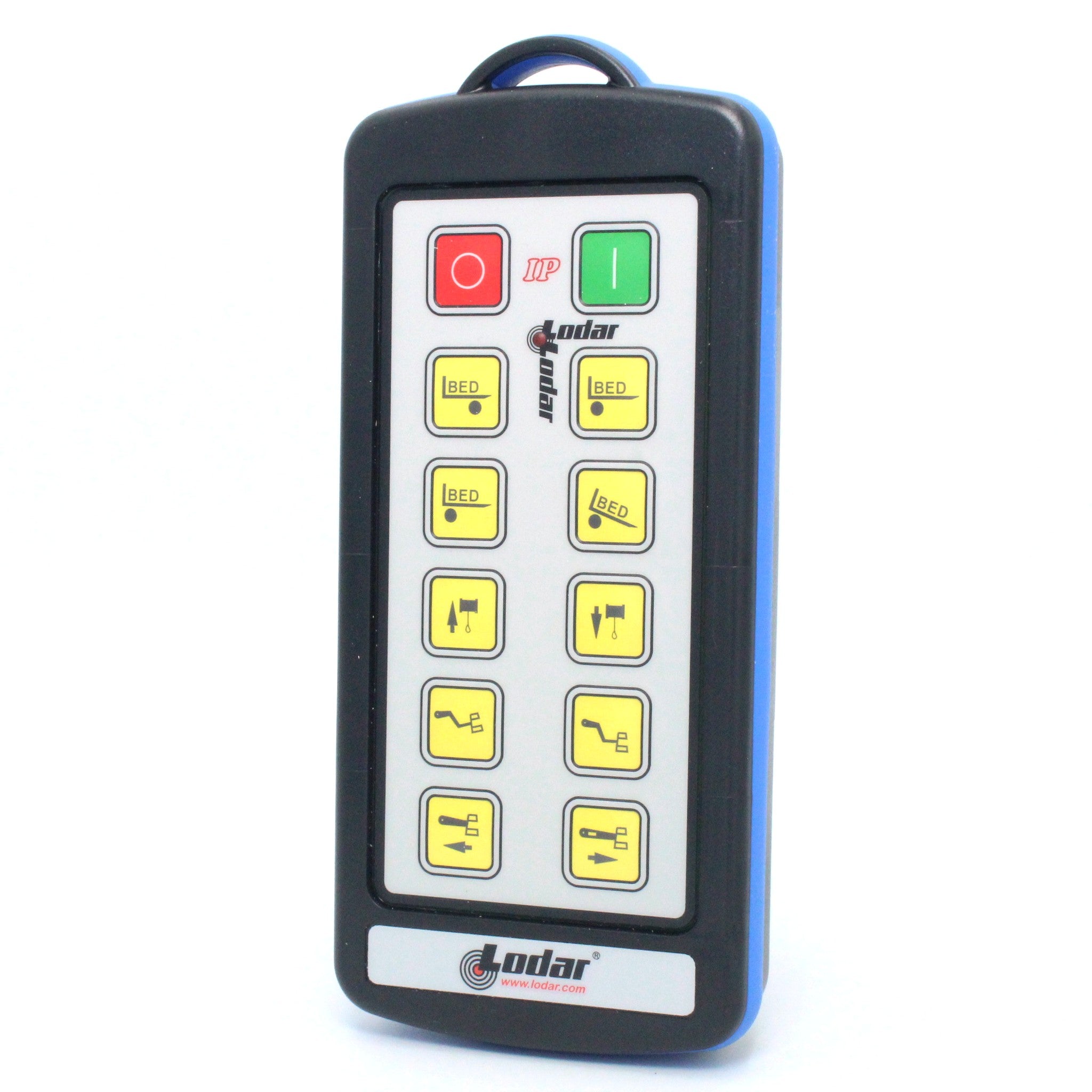

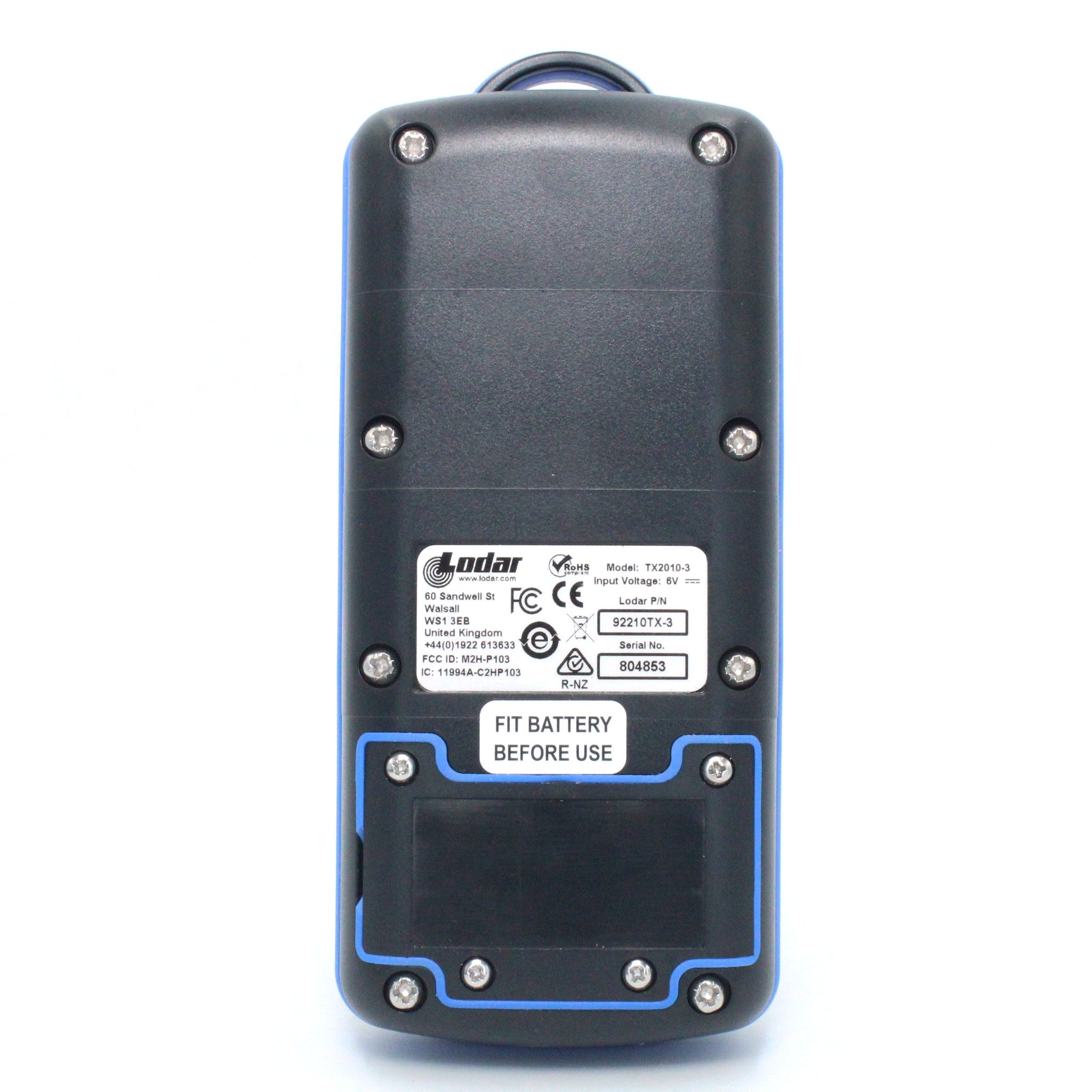

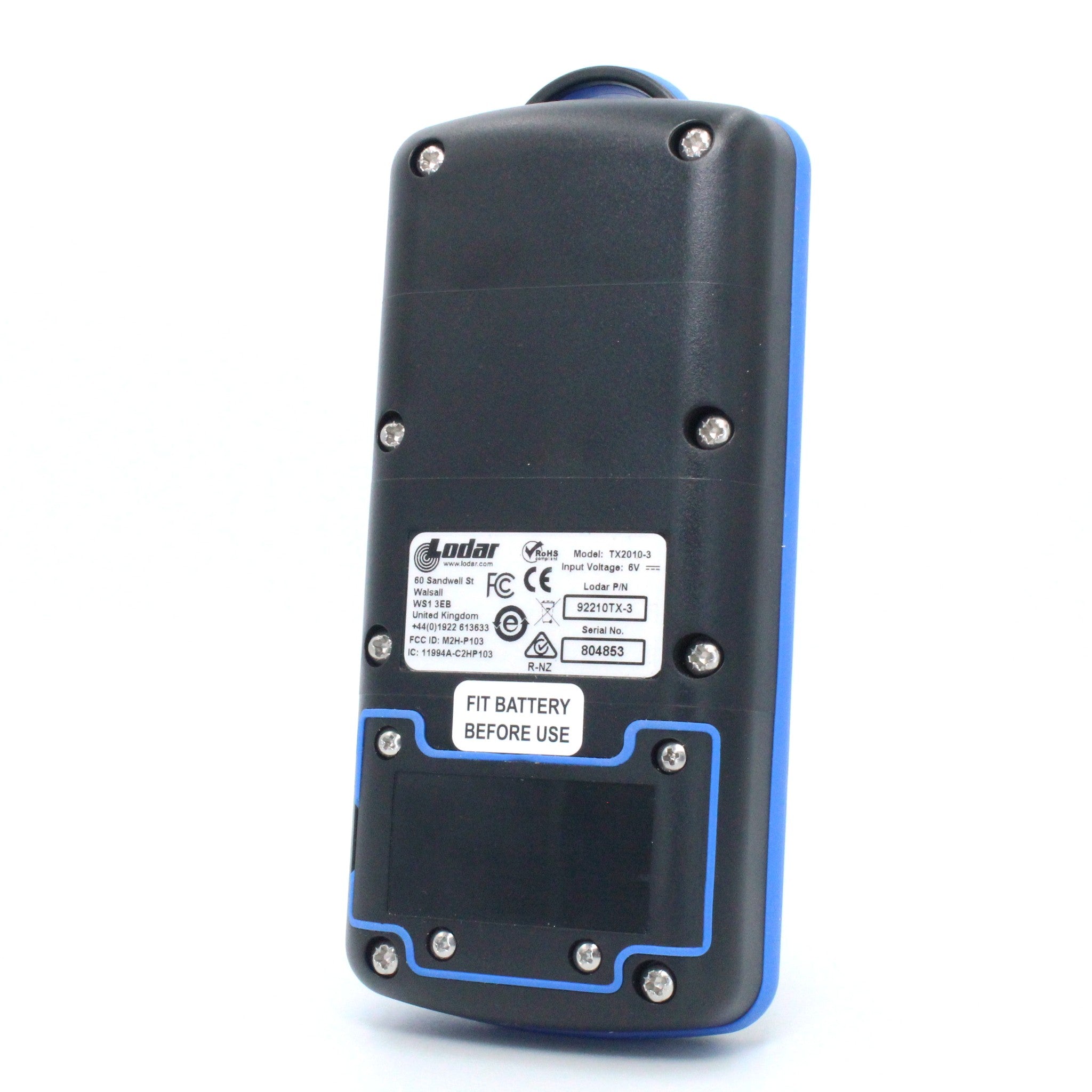

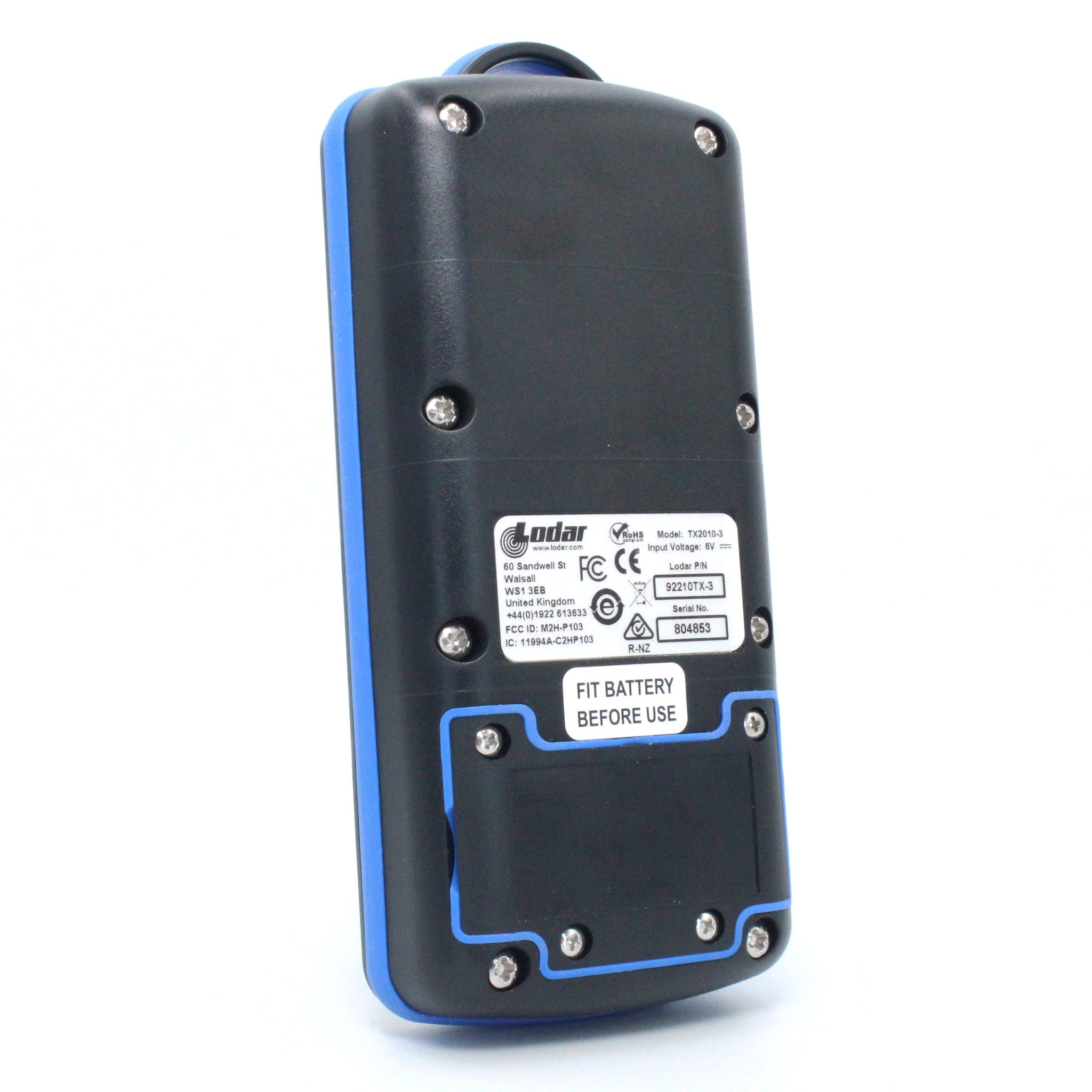

- Lodar 92210TX-3 IP transmitter handset (IP65, 9/10/1/2576/1978 insert configuration)
- Lanyard
- Installation and wiring instructions
